The NEW Extreme 5420M-16MW-32P-4YE is a Layer 3 PoE switch designed for high-performance connectivity. It features 48 RJ45 ports, with (16) supporting up to 2.5Gbps speed and (32) providing Gigabit connections.
The unit includes four SFP28 uplink slots that support speeds of up to 25Gbps each, enhancing data transfer versatility within diverse networks. With a switching capacity of 424 Gbps and a forwarding rate reaching up to 315.5 million packets per second (mpps), the device supports bandwidth-intensive operations effectively.

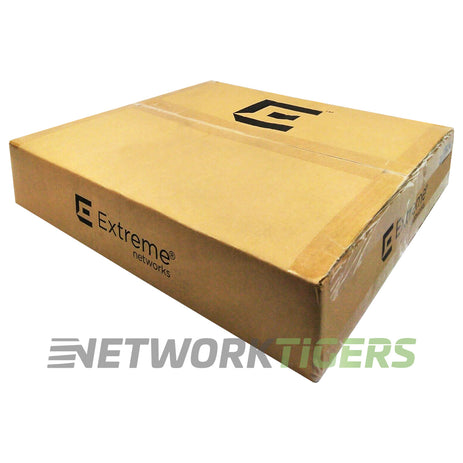

NEW Extreme 5420M-16MW-32P-4YE 48x PoE RJ45 (16x 2.5GB 32x 1GB) 4x SFP28 Switch
- Network Ports : 16x 2.5 Gigabit Ethernet PoE RJ45, 32x 1 Gigabit Ethernet PoE RJ45
- Uplink Ports : 4x 25 Gigabit Ethernet SFP28
- Management Ports : 1x Serial Console RJ45, 1x 1 Gigabit Out-of-Band Management, 2x USB A, 1x USB Micro-B Console
- Stacking Ports : 2x Stacking/SFP-DD ports*
- Fan Modules AirFlow Direction : 1x Fan Module Included (XN-FAN-000)
- Power Supplies Included : 2x Unpopulated PSU Slots - Options are XN-ACPWR-920W or XN-ACPWR-2000W
- PoE Budget : Depends on Power Supply - See DataSheet (Page 9)
- Switching Capacity : 424 Gbps
- Forwarding Rate : 315.5 mpps
- MAC Address Table Size : 32,000 (64,000 non-Fabric)
- Rack Mounts : Included (1-RU)
- Model Number : 5420M-16MW-32P-4YE
- Part Number : 5420M-16MW-32P-4YE
- Condition : New
- One (1) New Extreme 5420M-16MW-32P-4YE 5420 Series 16x 2.5 Gigabit PoE RJ45 32x 1 4x 25 SFP28 Switch as described above
