Overview

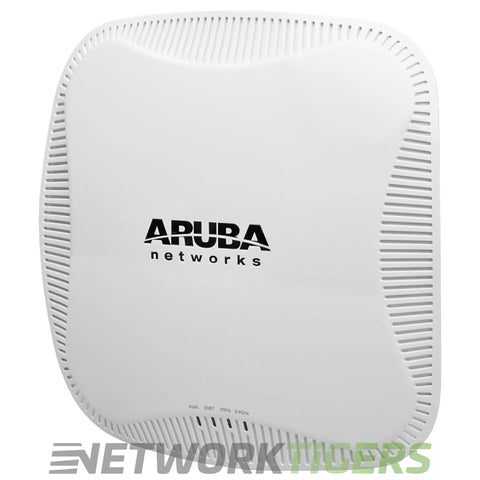

The HPE Aruba JW171A AP-215 is a dual radio 802.11ac access point with internal omnidirectional antennas, offering data link protocols including IEEE 802.11b/n/ac for use in both the 2.4GHz and 5GHz frequency bands.

With a maximum data rate of up to 1.3 Gbps, this access point provides reliable wireless connectivity suitable for various networking needs across different regulatory domains. Equipped with MIMO technology and boasting a max gain of 5 dBi on both frequency bands, the HPE Aruba JW171A AP-215 ensures efficient transmission speeds and enhanced coverage area without compromising performance or quality components required within demanding network environments.

HPE Aruba JW171A AP-215 Dual Radio 802.11ac 3x3:3 MIMO Internal Antenna TAA WAP


Specifications

  • Interface Ports : 1x 1 Gigabit Ethernet PoE RJ45
  • Radios : 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3x3 MIMO
  • Management Ports : 1x RJ45 Console, 1x USB 2.0 (Type A)
  • Antenna Ports : 3x Integrated Omnidirectional downtilt antennas with 3x3 MIMO
  • Antenna Type : Omni-Directional
  • Power Options : Power over Ethernet - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - Power Adapter JX989A Not Included - PoE Injector JW627A Not Included
  • Frequency : 2.4 GHz, 5 GHz
  • Data Link Protocol : IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
  • MIMO : 3x3 MIMO
  • Maximum Data Rate : 1.3 Gbps
  • Max Gain : 5.0 dBi in 2.4 GHz and 5.0 dBi in 5 GHz
  • TAA : Yes
  • Mounts : Included - 2x for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling (JW044A)
  • Model Number : JW171A
  • Part Number : JW171A, AP-215
  • Condition : New


Included

  • One (1) NEW HPE Aruba AP-215 JW171A (TAA) Wi-Fi 5 802.11ac Internal Ant Indoor WAP as described above
