The HPE Aruba JZ347A AP-535 (US) is a TAA-compliant wireless access point that operates on both 2.4 GHz and 5 GHz frequencies. MU-MIMO and OFDMA technology provide an aggregate bandwidth of up to 3.55 Gbps for high-speed connectivity in the US regulatory domain.
The maximum data rate reaches 1.150 Mbps on the 2GHz band and up to 2.4 Gbps on the faster-performing higher frequency bands. Outputting impressive performance capabilities with its dual radio setup, this WAP offers reliable wireless coverage suitable for various applications within demanding environments without compromising speed or stability across connected devices.

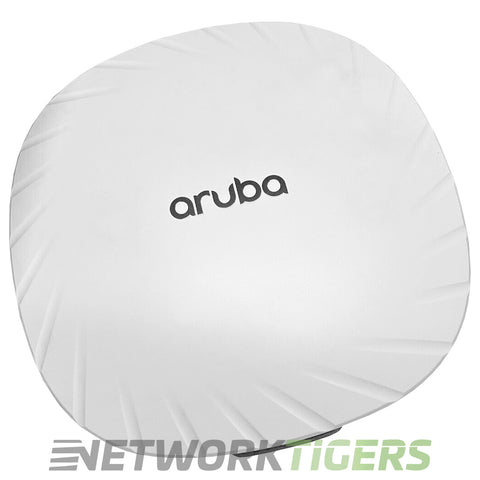

HPE Aruba JZ347A AP-535 (US) Dual Radio 802.11ax 4x4:4 MU-MIMO OFDMA TAA WAP
- Wi-Fi Standard : Wi-Fi 6 (802.11ax) - OFDMA - Bidirectional MU-MIMO (uplink and downlink in 5 GHz - downlink only in 2.4 GHz)
- Managed By : HPE Aruba Networking Central (cloud) or on-premises controller/gatewa
- Suggested Use : Indoor enterprise campus environments
- Region : US (TAA)
- Radios : Dual radio - 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 4x4 MIMO
- Spatial Streams per Radio : 4
- Maximum Data Rate : 2.97 Gbps combined (2.4 Gbps @ 5 GHz HE80 - 574 Mbps @ 2.4 GHz HE20)
- Bluetooth / IoT Radios : Bluetooth 5.0 BLE and Zigbee (802.15.4) - 2.4 GHz
- PoE Standard : 802.3at (class 4) or 802.3bt (class 5) (E0 and/or E1)
- DC Power Input : 48 Vdc nominal (+/-5%) - 1.35 mm / 3.5 mm center-positive circular plug - 9.5 mm length
- Uplink Ports : 2x 100/1000/2500/5000BASE-T HPE SmartRate RJ-45 (E0 and E1)
- Other Ports : 1x USB 2.0 Type-A (up to 1A/5W), 1x Serial console (micro-B USB)
- Antenna Type : Internal - 4x integrated dual-band downtilt omnidirectional - 3.5 dBi peak @ 2.4 GHz - 5.4 dBi peak @ 5 GHz - BLE/Zigbee integrated omnidirectional 3.1 dBi peak
- Antenna Ports : None - Internal antennas only
- Antenna Options : None - Fixed internal antennas
- Mounting Options : AP-OUT-MNT-V1A (Pole/Wall Long) - AP-270-MNT-H1 (Hanging/Tilt) - AP-270-MNT-H2 (Flush Wall/Ceiling) - AP-270-MNT-H3 (Hanging/Dual-Tilt) - all sold separately
- Mounts Included : Mounting bracket pre-installed on back of unit - additional mount kits sold separately
- Model Number : JZ347A
- Part Number : JZ347A
- Condition : New

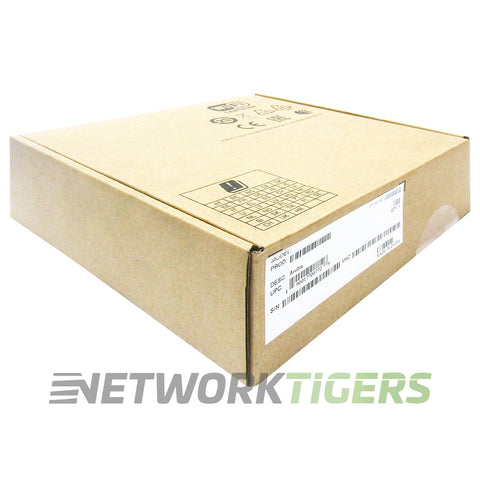

- One (1) NEW HPE Aruba AP-535 JZ347A Wi-Fi 6 802.11ax Dual Radio 4x4:4 Int Ant (TAA) AP as described above
