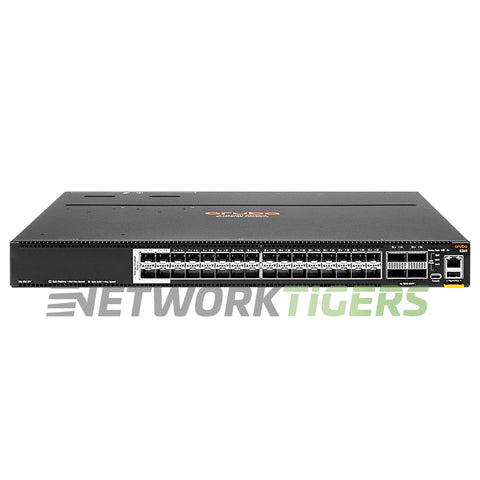

NEW HPE Aruba JL701A CX 8360 Series 8360-32Y4C Back-to-Front Air Switch Bundle
New

NEW HPE Aruba JL701A CX 8360 Series 8360-32Y4C Back-to-Front Air Switch Bundle

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0458

Overview

The NEW HPE Aruba JL701A CX 8360 Series switch bundle offers a high switching capacity of 2.4Tbps and a forwarding rate of 1,145 Mpps, making it suitable for data-intensive networks. With a MAC address table size of 212,992 entries, this switch provides efficient traffic management in large-scale environments.

Designed to meet the needs of modern networking infrastructure, the JL701A CX 8360 Series switch bundle delivers robust functionality for seamless connectivity across your network. This model is ideal for businesses looking to enhance their network capabilities with reliable hardware supporting high-density applications without sacrificing speed or efficiency.

NEW HPE Aruba JL701A CX 8360 Series 8360-32Y4C Back-to-Front Air Switch Bundle


Specifications

  • Network Ports : 28x 1GbE/10GbE/25GbE (SFP/SFP+/SFP28)
  • Uplink Ports : 4x 10GB/25GB (SFP+/SFP28) with MACsec, 4x 40GB/100GB (QSFP+/QSFP28)
  • Management Ports : RJ45 Serial, USB-C Console, RJ45 Ethernet, USB-Type A
  • Product Family : Aruba CX 8360 Series
  • Max VLAN's : 4,094
  • Switch Version : Aruba OS-CX
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Module Options : 3x JL715A Aruba 8360 Power-to-Port Fan Modules Included (Back-to-Front Airflow)
  • Power Supplies Included : 2x JL712A 550W Power-to-Port 100-240VAC Power Supplies Included (Back-to-Front Airflow)
  • Power Supply Options : JL600A is the F-B airflow option
  • CPU : 1.8 GHz 4-core 64-bit
  • Switching Capacity : 2.4 Tbps
  • Forwarding Rate : 1,145 Mpps
  • MAC Address Table Size : 212,992
  • Packet Buffer : 32MB
  • DRAM and Flash : 16GB RAM, 32GB Flash/Storage
  • : Mounting Kit is sold separately. Options are - JL602A ( 2-post RM Kit), J9583B (4-post RM Kit)
  • Model Number : JL701A
  • Part Number : JL701A
  • Condition : New


Included

  • One (1) NEW HPE Aruba JL701A CX 8360 Series 8360-32Y4C Back-to-Front Air Switch Bundle as described above
