The NEW HPE Aruba JW236A IAP-224 (US) Instant Access Point supports dual-radio 802.11ac with a maximum data rate of 1.3 Gbps, making it suitable for high-speed wireless connectivity in both the 2.4 GHz and 5 GHz frequency bands.
The device features a robust internal architecture that delivers reliable performance using its upgraded MIMO technology with three spatial streams per band (3x3:3). Maximum antenna gain is rated at up to 1.5 dB for the 2.4 GHz spectrum and up to 3 dB on the faster-performing, less-congested bandwidth range of five gigahertz networks, enhancing signal reliability based on installation sub-configurations or layouts requiring control over distance-to-performance ratios within closed-area operations.

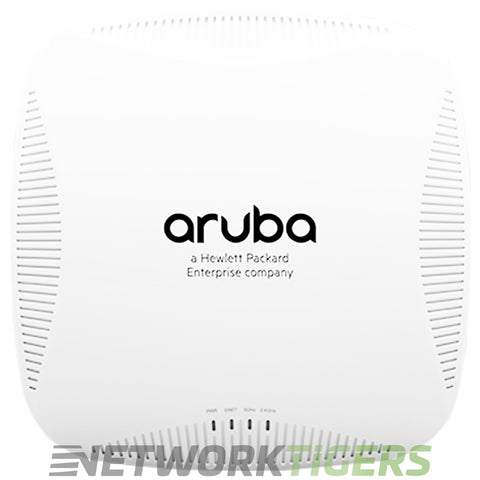

NEW HPE Aruba JW236A IAP-224 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP
- Interface Ports : 2x 1 Gigabit Ethernet PoE RJ45
- Radios : 2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max) radios, each with 3x3 MIMO and three combined, diplexed external antenna connectors
- Management Ports : 1x RJ45 Console, 1x USB 2.0 (Type A)
- Antenna Ports : 3x RP-SMA Connectors for External Dual-Band Antennas - Antennas not included
- Max Gain : 1.5 dB in 2.4 GHz and 3.0 dB in 5 GHz
- Power Options : Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af or 802.3at Compliant source | Direct DC source - 12 Vdc nominal, +/- 5% - JX989A AC-DC Adapter Kit is Not Included (sold separately) - JW629A Injector sold separately
- Frequency : 2.4 GHz, 5GHz
- MIMO : 3x3 MIMO
- Maximum Data Rate : 1.3 Gbps
- Mounts : Included - 2x for attaching to 9/16-inch or 15/16-inch T-bar drop-tile ceiling (JW044A)
- Model Number : JW236A
- Part Number : JW236A
- Condition : New
- One (1) NEW HPE Aruba JW236A IAP-224 (US) Instant Dual Radio 802.11ac 3x3:3 MIMO WAP as described above
