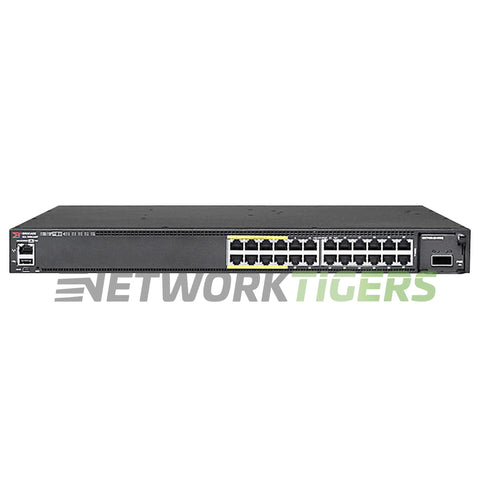

NEW Ruckus Brocade ICX7450-24P-E 24x 1GB PoE+ RJ45 4x SFP+ 2x 40GB QSFP+ Switch
New

NEW Ruckus Brocade ICX7450-24P-E 24x 1GB PoE+ RJ45 4x SFP+ 2x 40GB QSFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

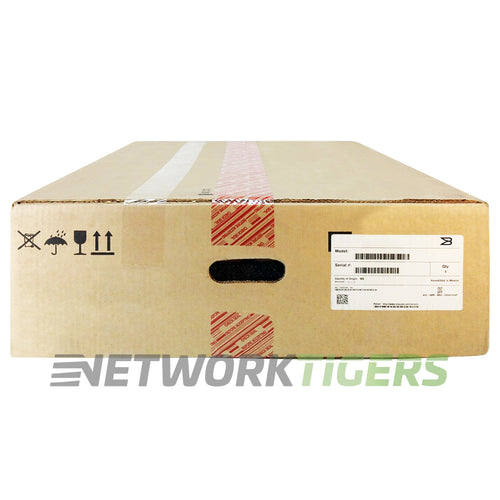

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3771
UPC: 088698985786

Overview

The Ruckus ICX7450-24P-E from the Brocade ICX 7450 series is a powerful, reliable network switch designed for corporate infrastructure use. Its impressive performance capabilities deliver exceptional speed, PoE+ power, and efficiency in a low-cost stackable device.

This switch boasts advanced features such as PoE+ support, providing power to connected devices without needing extra power supplies. This feature makes it ideal for deploying wireless access points or IP cameras in various environments.

Regarding performance, this switch offers excellent throughput with up to 288 Gbps switching capacity. It also provides low latency PoE+ connectivity that ensures minimal delays during data transfer – essential for real-time communication applications like VoIP or video conferencing.

Ruckus ICX7450-24P-E: 24-port 1 GbE switch PoE+ bundle includes 4x 10 GbE SFP+ uplinks/stacking, 2x 40 GbE QSFP+ uplinks/stacking, 1x 1,000 W AC power supply and one fan, front-to-back airflow.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (through the use of the ICX7400-4X10GF Module)
  • Management Ports : 1x Mini-USB RS232 Serial port (Mini-B plug), 1x RJ45 Gigabit Ethernet Management port, 1x USB port
  • Stacking Ports : 2x 40 Gigabit QSFP+ Stacking/ Uplink (through the use of 2x ICX7400-1X40GQ Modules)
  • Stacking Options : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
  • Module Slots : 3x Expansion Module Slots (1x Front of Switch, 2x Rear of Switch). Modules included are 1x ICX7400-4X10GF (4x 1/10 GB SFP/SFP+), 2x ICX7400-1X40GQ (1x 40 GB QSFP+ module)
  • Module Options : Options are ICX7400-4X1GF, ICX7400-4X10GF, ICX7400-4X10GC, ICX7400-1X40GQ, ICX7400-SERVICE-MOD
  • AirFlow Direction : Front to Back Airflow
  • Fan Module Options : 1x ICX-FAN10-E Fan Included - Front to Back Airflow
  • Power Supplies Included : 1x RPS16-E 1000W AC Power Supply Included
  • PoE Budget : 1500W
  • Switching Capacity : 288 Gbps
  • Forwarding Rate : 214 Mpps
  • MAC Address Table Size : 32,768
  • Latency : 1.3 μs
  • DRAM and Flash : 2GB DRAM, 2GB Flash
  • : Included (1-RU)
  • Model Number : ICX7450-24P-E
  • Part Number : ICX7450-24P-E
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7450-24P-E 24x 1GB PoE+ RJ45 4x SFP+ 2x 40GB QSFP+ Switch as described above
