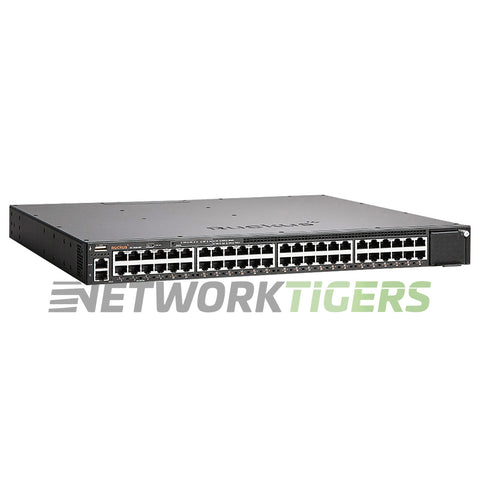

NEW Ruckus Brocade ICX7650-48P-E 48x 1GB PoE+ RJ45 4x 40GB QSFP+ F-B Air Switch
New

NEW Ruckus Brocade ICX7650-48P-E 48x 1GB PoE+ RJ45 4x 40GB QSFP+ F-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-7960

Overview

The Ruckus Brocade ICX7650-48P-E switch features 48 PoE+ RJ45 ports and 4 QSFP+ uplinks, making it ideal for high-density network environments. With a generous PoE budget of 1500W, this switch can power multiple devices simultaneously without sacrificing performance.

The switching capacity of 696 Gbps ensures fast data transfer speeds, while the MAC address table size of 80,000 allows for efficient routing within the network. With a latency rate as low as DRAM:4GB and a forwarding rate of 518 Mpps, this switch delivers reliable connectivity for your business needs.

Ruckus ICX7650-48P-E: 48-port 1 GbE switch PoE+, 4xQSFP (either 2x100G or 4x40G active), modular slot. bundle includes one 1000W AC power supply and one fan, front-to-back airflow, port modules sold separately.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
  • Management Ports : 1x Out of Band Management RJ45, 1x Serial Console RJ45, 1x USB Type C, 1x USB Type A
  • Aggregated stacking bandwidth (data rate, full duplex) : 2.4 Tbps
  • Module Slots : 1x Expansion Module Slot - Modules not included. (One slot for 2x40G or 4x10G front facing module)
  • Module Options : ICX7650-2X40GQ, ICX7650-4X10GF
  • Fan Module Options : 2x Fan Module Slots - 1x Fan Module Included - Front to Back Airflow
  • Power Supplies Included : 2x PSU Slots - 1x 1000W AC PSU Included
  • PoE Budget : 1500W
  • Switching Capacity : 696 Gbps
  • Forwarding Rate : 518 Mpps
  • MAC Address Table Size : 80,000
  • DRAM : 4GB
  • : Included (1-RU)
  • Model Number : ICX7650-48P-E
  • Part Number : ICX7650-48P-E
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7650-48P-E 48x 1GB PoE+ RJ45 4x 40GB QSFP+ F-B Air Switch as described above
