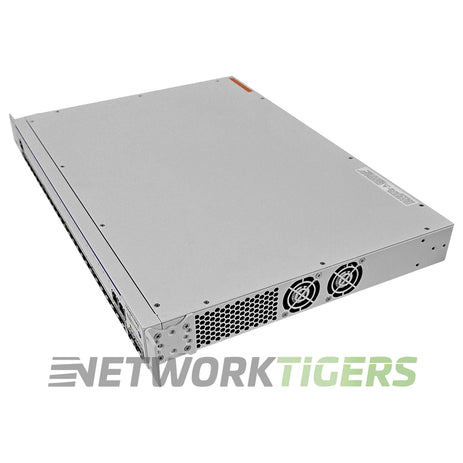

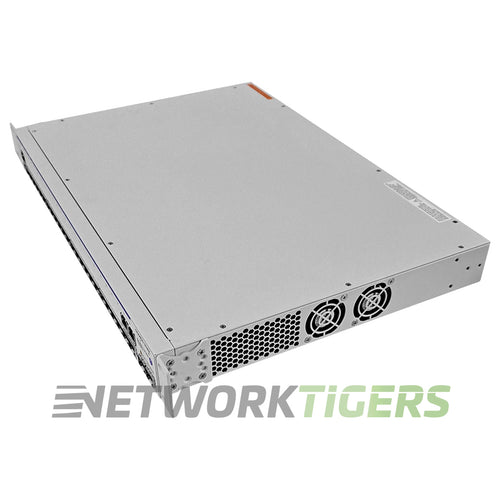

The Alcatel-Lucent OS6450-U24X is a rack-mountable Layer 2/3 switch from Alcatel-Lucent, featuring 22x 1Gb SFP ports, 2x combo (RJ-45/SFP) Gigabit Ethernet ports, and 2x SFP+ uplink ports. It supports transmission speeds up to 128 Gb/s switching capacity and offers a forwarding rate of up to 95.3 Mpps.

This model includes one expansion module slot compatible with optional modules such as the OS6450-XNI-U2, OS6450-GNI-U2, OS6450-GNI-C2 or the dual-port high-speed uplink variant OS6450-XNI-U2X. Its design allows for flexible port configurations in aggregation or edge deployments requiring both fiber connectivity and additional scalability via modular options. The unit operates using internal power supply models and can be mounted in standard racks following its form factor specification.

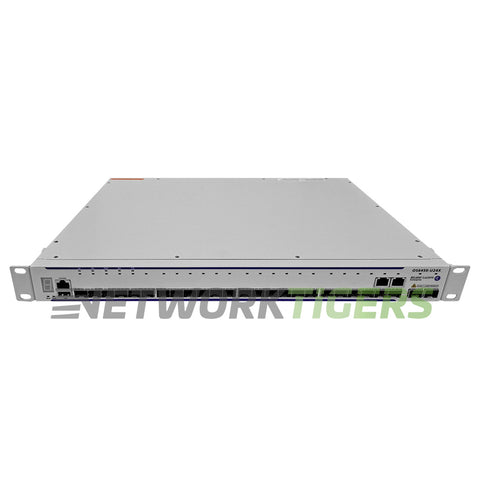

Alcatel-Lucent OS6450-U24X: Gigabit Ethernet chassis in a 1U form factor with 22 100/1000 Base-X SFP ports, 2 combo ports configurable to be 10/100/1000 Base-T or 100/1000 Base-X, 2 fixed SFP+ 10G ports enable by default and one expansion slot for optional stacking or uplink modules.
