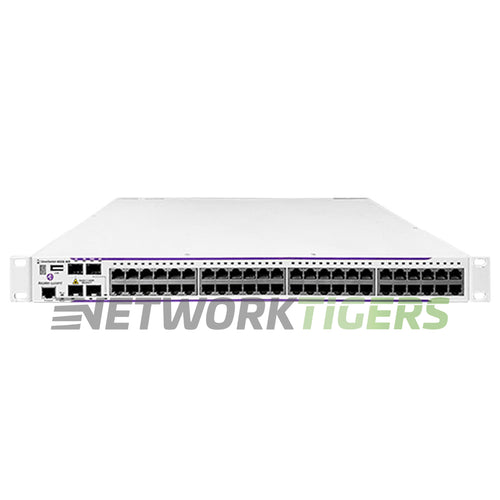

Alcatel-Lucent OS6850E-48X 46x 1GB RJ45 2x 10GB SFP+ 2x 10GB CX-4 Switch

Alcatel-Lucent OS6850E-48X 46x 1GB RJ45 2x 10GB SFP+ 2x 10GB CX-4 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9087

Overview

The Alcatel-Lucent OS6850E-48X switch is a powerful networking solution designed to meet the demands of modern businesses. With 46 1GB RJ45 ports, 2x 10GB SFP+ ports, and 2x 10GB CX-4 ports, this switch offers high-speed connectivity for all your devices.

Featuring a Jumbo Frame size of up to 9216 bytes for improved performance in data-intensive applications, this switch has a Switching Capacity of up to 131 Mpps and a Forwarding Rate of up to 20/40 Gbps. Additionally, with Stacking Capacity (full duplex/aggregated), you can easily expand your network as needed without sacrificing performance.

Alcatel-Lucent OS6850E-48X: Gigabit Ethernet L3 fixed configuration chassis with 46 RJ45 10/100/1000 BaseT ports, 2 combo ports, 2 SFP+ 10GigE ports, and two 10GigE CX-4 ports. The CX-4 ports can be used as stacking ports or as connectors for the OS6-XNI-U2 A 126-W AC or 120-W DC power supply respectively is included in the bundle.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ45
  • Uplink Ports : 2x 10 Gigabit SFP+, 2x 10 Gigabit CX-4
  • Stacking Ports : 2x 10G CX-4 (stacking ports or connector for OS6-XNI-U)
  • Jumbo Frame size : 9216 bytes (for 1/10 Gbps)
  • Switching Capacity : 131 Mpps
  • Forwarding Rate : 20/40 Gbps Stacking Capacity (full duplex/aggregated)
  • Rack Mounts : Included (1U)
  • Model Number : OS6850E-48X
  • Part Number : OS6850E-48X
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Alcatel-Lucent OS6850E-48X 46x 1GB RJ45 2x 10GB SFP+ 2x 10GB CX-4 Switch as described above
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
