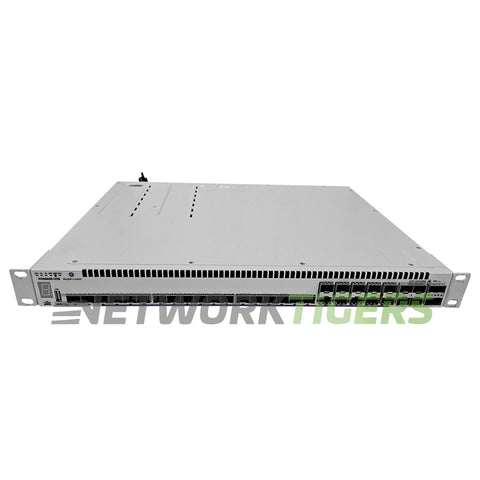

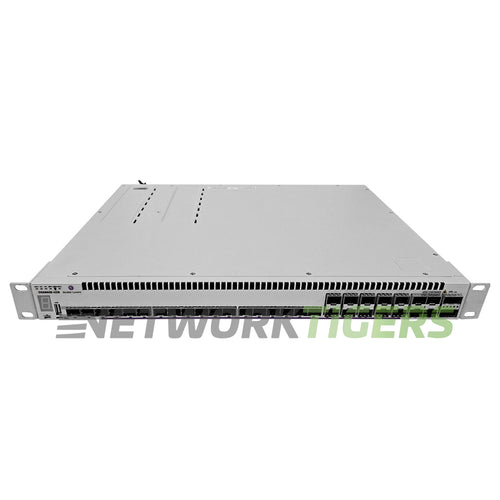

Alcatel-Lucent OmniSwitch 6860E-U28, manufactured by Alcatel-Lucent Enterprise, is a fixed rack-mount switch with 28 × 1 Gb SFP ports and 4 × 10 Gb SFP+ uplinks. It supports a switching capacity of up to 224 Gb/s and a forwarding rate of up to 160.9 Mpps.
The unit supports up to 4,000 VLANs and a MAC address table size of 48,000 entries. It is suited for aggregation or access roles that require high port density with fiber interfaces. The switch is designed for rack installation and operates with standard AC power, providing low-latency packet processing for consistent data handling.
- Network Ports : 28x 1 Gigabit Ethernet SFP
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 1x USB, 1x Out of Band EMP, 1x RS-232, 1x Console,
- Stacking Ports : 2x 20 Gigabit QSFP Virtual Stacking Ports
- AirFlow Direction : Front to back
- Fan Module Options : Fanless
- Power Supplies Included : 2x OS6860-BP PSU's Included
- Switching Capacity : 224 Gb/s
- Forwarding Rate : 160.9 Mpps
- MAC Address Table Size : 48,000
- Number of VLANs : 4,000
- DRAM and Flash : 2 GB RAM, 2 GB Flash
- Model Number : OS6860E-U28
- Part Number : OS6860E-U28
- Condition : Seller refurbished
https://www.also.com/ec/cms5/media/documents/1010_anbieter/alcatel_lucent_enterprise/e2014024412en_omniswitch_6860_datasheet.pdf
- One (1) Seller refurbished Alcatel-Lucent OS6860E-U28 OmniSwitch 6860 28x 1GB SFP 4x 10GB SFP+ Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
