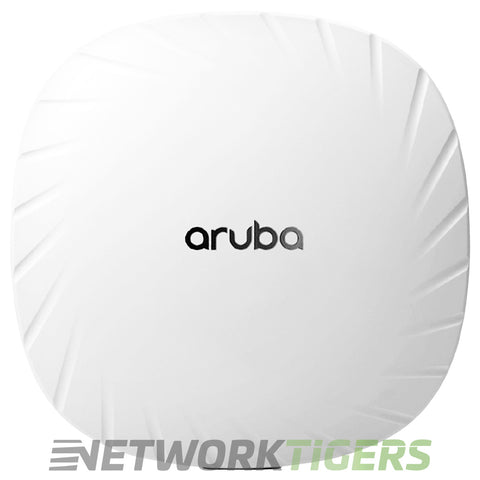

NEW HPE Aruba AP-514 Q9H58A US Wi-Fi 6 802.11ax External Antenna Wireless AP

~~$ 152.99~~
$ 136.99

8 in stock Call if you need more

Shipping: OVERNIGHT OPTION

Condition: New

Warranty: 365 days

SKU: NSN-2468 ASK FOR QUOTE

UPC: 190017273587

Experience blazing-fast and reliable WiFi with the NEW HPE Aruba Q9H58A AP-514 (US) Dual Radio 802.11ax WiFi 6 MU-MIMO OFDMA WAP! Upgrade your network with the latest technology for seamless connectivity, improved speed, and enhanced performance.

The HPE Aruba Q9H58A AP-514 (US) is a dual radio 802.11ax WiFi 6 MU-MIMO OFDMA WAP with antenna options available for capacity optimization. It supports up to 16 BSSIDs per radio and 256 wireless clients per Wi-Fi radio, ensuring reliable connectivity in the 2.4 GHz and 5 GHz frequency bands.

NEW HPE Aruba Q9H58A AP-514 (US) Dual Radio 802.11ax WiFi 6 MU-MIMO OFDMA WAP

Wi-Fi Standard : 802.11ax (Wi-Fi 6), MU-MIMO, OFDMA
Managed By : Aruba Central / Aruba Mobility Controller
Suggested Use : Indoor, campus, high density environments
Region : United States
Radios : Dual Radio - 5GHz 802.11ax 4x4 MIMO & 2.4GHz 802.11ax 2x2 MIMO, plus Bluetooth 5 and Zigbee (802.15.4) radio
Spatial Streams per Radio : 5GHz 4SS / 2.4GHz 2SS
Maximum Data Rate : 2.69 Gbps aggregate (574 Mbps 2.4GHz + 4.8 Gbps 5GHz max)
Bluetooth / IoT Radios : Bluetooth 5 and Zigbee (802.15.4)
PoE Standard : 802.3af (class 3) / 802.3at (class 4) / 802.3bt (class 5)
DC Power Input : 12V DC nominal ±5% (2.1/5.5mm center-positive jack) - power sources are sold separately
Uplink Ports : 1x 100/1000/2500BASE-T SmartRate RJ-45 (E0 PoE) and 1x 10/100/1000BASE-T RJ-45 (E1)
Other Ports : 1x USB 2.0 Type-A
Antenna Type : External (RP-SMA connectors)
Antenna Ports : 4x dual-band RP-SMA female connectors
Antenna Options : Sold Separately - JW009A (ANT-1W Hi-gain Omni), JW001A (ANT-13B Downtilt Omni), JW004A (ANT-19 Omni Indoor/Outdoor), JW011A (ANT-20W Compact Omni), JW017A (ANT-40 MIMO Omni), JW018A (ANT-45 Sector 90x90), JW019A (ANT-48 Sector 60x60)
Mounting Options : Ordered Separately - R3J15A (Type A, flat rail 9/16), R3J16A (Type B, flat rail 15/16), R3J17A (Type C, profile rail 9/16), R3J18A (Type D, solid surface), R3J19A (Type E, wall-box)
Mounts Included : A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the (sold separately) mount kits
Model Number : Q9H58A
Part Number : Q9H58A, AP-514, AP-514-US, APIN0514
Condition : New
