The HPE Aruba Q9H63ACM CM AP-515 (US) is a dual-radio 802.11ax Wireless Access Point with integrated antennas operating on both the 2.4GHz and 5GHz frequencies. It supports IEEE standards, including 802.11a/b/g/n/ac, for flexible connectivity options in your network setup.
With a maximum data rate of up to 575 Mbps at 2.4 GHz and up to impressive speeds reaching peak rates of around Fast downloads are supported with capabilities up to this amount Gbps over the higher frequency bandwidths, making it ideal for demanding environments that require high-performance wireless connectivity.

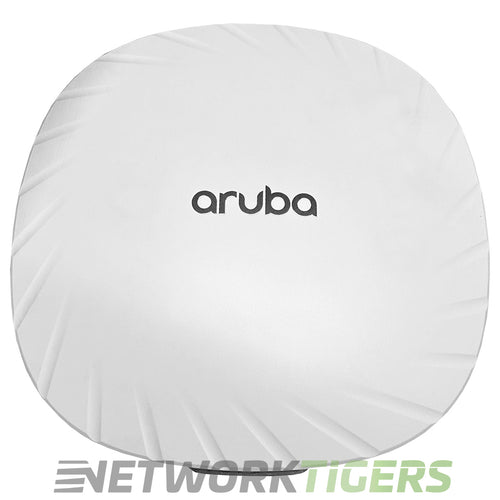

HPE Aruba Q9H63ACM CM AP-515 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Int Ant WAP
- Wi-Fi Standard : 802.11ax (Wi-Fi 6), MU-MIMO, OFDMA
- Managed By : Central Managed (CM)
- Suggested Use : Indoor, campus, high density environments
- Region : United States (US)
- Radios : Dual Radio, 5GHz 802.11ax 4x4 MIMO & 2.4GHz 802.11ax 2x2 MIMO, plus Bluetooth 5 and Zigbee (802.15.4) radio
- Spatial Streams per Radio : 5GHz 4SS / 2.4GHz 2SS
- Maximum Data Rate : 2.69 Gbps aggregate (574 Mbps 2.4GHz + 4.8 Gbps 5GHz max)
- Bluetooth / IoT Radios : Bluetooth 5 and Zigbee (802.15.4)
- PoE Standard : 802.3af (class 3) / 802.3at (class 4) / 802.3bt (class 5) - PoE Injector not included
- DC Power Input : 12V DC nominal ±5% (2.1/5.5mm center-positive jack) - DC Adapter not included
- Uplink Ports : 1x 100/1000/2500BASE-T SmartRate RJ-45 (E0 PoE) and 1x 10/100/1000BASE-T RJ-45 (E1)
- Other Ports : 1x USB 2.0 Type-A
- Antenna Type : Integrated dual-band downtilt omni-directional
- Antenna Ports : N/A - Internal Antennas
- Mounting Options : Ordered Separately - R3J15A (Type A, flat rail 9/16), R3J16A (Type B, flat rail 15/16), R3J17A (Type C, profile rail 9/16), R3J18A (Type D, solid surface), R3J19A (Type E, wall-box)
- Mounts Included : A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the (sold separately) mount kits
- Model Number : Q9H63ACM
- Part Number : Q9H63ACM
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-515 Q9H63ACM (US) Wi-Fi 6 802.11ax Internal Ant Central Managed WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Bracket Not Included
