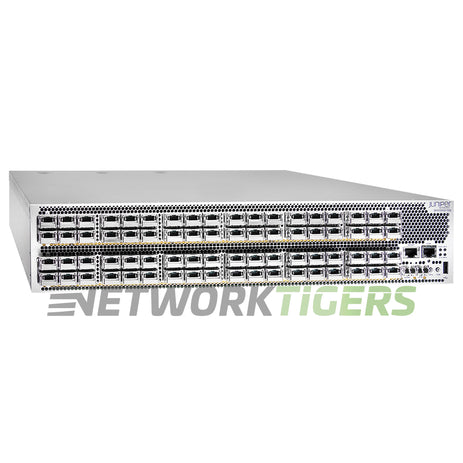

Juniper QFX10002-72Q QFX 10002 Series 72x 40GB QSFP+ F-B Airflow Switch

Juniper QFX10002-72Q QFX 10002 Series 72x 40GB QSFP+ F-B Airflow Switch

$ 10,871.99
$ 9,871.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9964
UPC: 832938071223

Overview

The Juniper QFX10002-72Q is a high-performance switch designed for data center environments. With 72x 40GB QSFP+ ports, it offers excellent connectivity options for demanding applications.

The switching capacity of up to 5.76 Tbps ensures smooth and efficient traffic flow, while the forwarding rate of up to 2 Bpps enables fast packet delivery. Equipped with a MAC address table size of up to 512,000 entries, this switch can handle large-scale networks without reducing performance or stability.

This product supports F-B airflow configuration which makes it suitable for different rack setups in your data center.

Juniper QFX10002-72Q: QFX10002 system with 72-port 40GbE QSFP+ / 24-port 100GbE QSFP28 / 288-port 10GbE SFP+ with 4 1600 W AC power supplies and 3 fan trays.


Specifications

  • Network Ports : 72x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Console, 1x USB 2.0, 1x SFP, 1x Gigabit Management
  • Stacking Options : The QFX10002 switches integrate with OpenStack, and CloudStack.
  • Switch Version : Junos OS
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 3x QFX10002-FAN Fan Trays Included
  • Power Supplies Included : 4x JPSU-1600W-AC-AFO 1600W AC PSU's Included
  • Power Supply Options : JPSU-1600W-AC-AFO for the reverse airflow option
  • Switching Capacity : Up to 5.76 Tbps
  • Forwarding Rate : Up to 2 Bpps
  • MAC Address Table Size : Up to 512,000; up to 96,000 learned per PFE
  • Latency : As low as 2.5 microseconds within a PFE, As low as 5.5 microseconds across PFEs
  • DRAM and Flash : 16GB DRAM
  • Model Number : QFX10002-72Q
  • Part Number : QFX10002-72Q
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Juniper QFX10002-72Q QFX 10002 Series 72x 40GB QSFP+ F-B Airflow Switch as described above
  • Four (4) AC Power Supplies Included
  • Four (4) Power Cords Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
