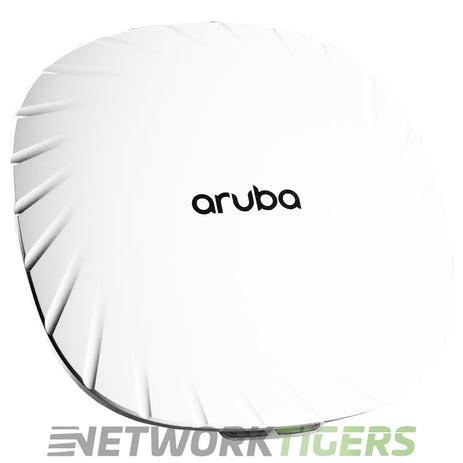

The HPE Aruba R2H29A AP-505 (US) is a powerful Wi-Fi 6 access point that provides fast and reliable wireless connectivity. Its dual-radio design supports the 2.4 GHz and 5 GHz frequency bands for maximum flexibility.
Featuring a 2x2:2 MIMO configuration, this access point delivers impressive performance. It offers a maximum data rate of up to 574 Mbps in the 2.4 GHz band and up to an even faster rate of 1.274 Gbps in the preferred high-speed range at -65 dBm signal-to-noise ratio (SNR).
With an aggregate throughput of 1.774 Gbps, this device can easily handle demanding applications while providing excellent coverage throughout your environment.
Aruba R2H29A: Aruba AP-505 (US) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- Managed By : Unified AP, meaning it supports all three management modes - Aruba Central, Controller-Managed Mode, Aruba Instant Mode
- Suggested Use : Cost-effective Wi-Fi 6 coverage in indoor environments such as mid-sized offices, schools, and retail spaces
- Region : US
- Radios : 1x 5 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams, 1x 2.4 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams
- Spatial Streams per Radio : 2
- Maximum Data Rate : Maximum data rate (2.4 GHz) - 574 Mbps | Maximum data rate (5 GHz) - 1.2 Gbps | Aggregate throughput - 1.774 Gbps
- Bluetooth / IoT Radios : 1x Integrated IoT Radio - Combined Bluetooth 5 and 802.15.4/Zigbee radio for IoT deployments including location-based services, asset tracking, and IoT sensor networks, eliminating the need for a separate IoT overlay infrastructure.
- PoE Standard : POE-PD - 48Vdc (nominal) 802.3af/at POE (class 3 or 4)
- DC Power Input : 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length - Power sources sold separately
- Uplink Ports : 1x 1 Gigabit Ethernet RJ45
- Other Ports : 1x Reset Button, 1x USB
- Antenna Type : 2x Internal dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz
- Mounting Options : The AP-505 ships with a mount bracket pre-installed on the back of the unit. Additional mount kits are sold separately
- Model Number : R2H29A
- Part Number : R2H29A, AP-505, AP-505-US, APIN0505
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-505 R2H29A (US) Wi-Fi 6 802.11ax Internal Ant Unified Campus WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Power Adapter Not Included
