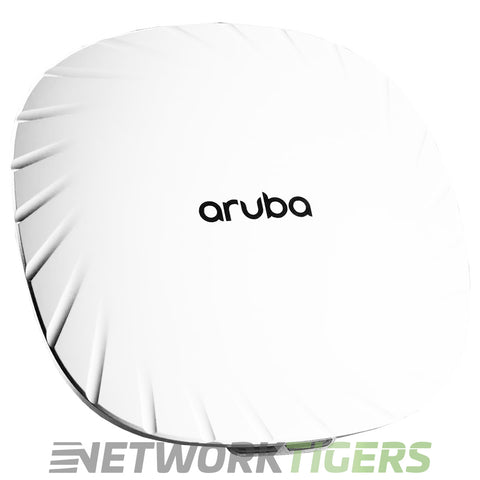

The HPE Aruba R2H29A AP-505 is a cutting-edge Wi-Fi 6 access point that offers enhanced performance and reliability for wireless networks. With its dual-radio design, it supports both 2.4 GHz and 5 GHz frequency bands, providing flexibility in network deployment.
Featuring a maximum data rate of up to 574 Mbps on the 2.4 GHz band and up to 1 Gbps on the faster 5 GHz band, this access point ensures high-speed connectivity for users across different devices.
One notable feature of the AP-505 is its support for MIMO technology with a configuration of two spatial streams (2x2:2). This improves signal quality by enabling multiple streams of data transmission between the device and access point.
With an aggregate throughput capacity of around 1.774 Gbps, this compact yet powerful device can handle demanding applications such as video streaming or large file transfers without sacrificing network performance.
Aruba R2H29A: Aruba AP-505 (US) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- Managed By : Unified AP, meaning it supports all three management modes - Aruba Central, Controller-Managed Mode, Aruba Instant Mode
- Suggested Use : Cost-effective Wi-Fi 6 coverage in indoor environments such as mid-sized offices, schools, and retail spaces
- Region : US
- Radios : 1x 5 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams, 1x 2.4 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams
- Spatial Streams per Radio : 2
- Maximum Data Rate : Maximum data rate (2.4 GHz) - 574 Mbps | Maximum data rate (5 GHz) - 1.2 Gbps | Aggregate throughput - 1.774 Gbps
- Bluetooth / IoT Radios : 1x Integrated IoT Radio - Combined Bluetooth 5 and 802.15.4/Zigbee radio for IoT deployments including location-based services, asset tracking, and IoT sensor networks, eliminating the need for a separate IoT overlay infrastructure.
- PoE Standard : POE-PD - 48Vdc (nominal) 802.3af/at POE (class 3 or 4)
- DC Power Input : 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length - Power sources sold separately
- Uplink Ports : 1x 1 Gigabit Ethernet RJ45
- Other Ports : 1x Reset Button, 1x USB
- Antenna Type : 2x Internal dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz
- Mounting Options : The AP-505 ships with a mount bracket pre-installed on the back of the unit.
- Mounts Included : Additional mount kits are sold separately
- Model Number : R2H29A
- Part Number : R2H29A, AP-505, AP-505-US, AP-505 US, APIN0505
- Condition : New
- One (1) NEW HPE Aruba AP-505 R2H29A US Wi-Fi 6 802.11ax Internal Ant Unified Campus WAP as described above
