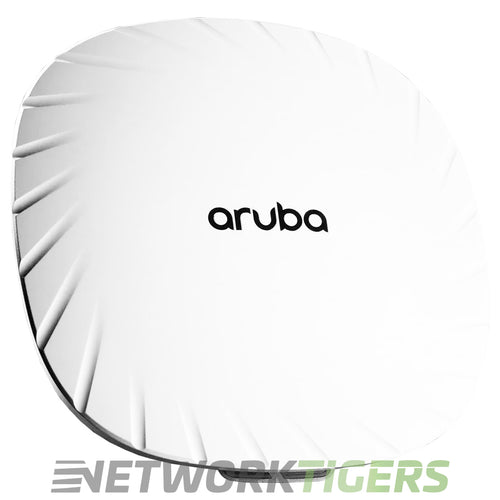

Experience the future of wireless networking with the HPE Aruba R2H39A AP-505 US DualRadio. Upgrade to blazing-fast 802.11ax Wi-Fi 6 technology, equipped with 2x2:2 MIMO for unprecedented speed and reliability. This TAA-compliant WAP ensures seamless connectivity for all your devices.
The HPE Aruba R2H39A AP-505 US is a dual-radio Wi-Fi 6 access point with 2x2:2 MIMO technology. It supports data link protocols, including IEEE 802.11b, g, n, ac, and ax (Wi-Fi 6) and Bluetooth 5.0 connectivity. The device operates on both the 2.4 and 5 GHz frequencies with a maximum data rate of up to 1.23 Gbps for fast wireless performance in various applications.
Antenna options include omni-directional directivity, which ensures wide coverage and reliability in network deployments. Regulatory domain compliance makes it suitable for use within the United States market.
Aruba R2H39A: Aruba AP-505 (US) TAA Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- Managed By : Unified AP, meaning it supports all three management modes - Aruba Central, Controller-Managed Mode, Aruba Instant Mode
- Suggested Use : Cost-effective Wi-Fi 6 coverage in indoor environments such as mid-sized offices, schools, and retail spaces
- Region : US TAA
- Radios : 1x 5 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams, 1x 2.4 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams
- Spatial Streams per Radio : 2
- Maximum Data Rate : Maximum data rate (2.4 GHz) - 574 Mbps | Maximum data rate (5 GHz) - 1.2 Gbps | Aggregate throughput - 1.774 Gbps
- Bluetooth / IoT Radios : 1x Integrated IoT Radio - Combined Bluetooth 5 and 802.15.4/Zigbee radio for IoT deployments including location-based services, asset tracking, and IoT sensor networks, eliminating the need for a separate IoT overlay infrastructure.
- PoE Standard : POE-PD - 48Vdc (nominal) 802.3af/at POE (class 3 or 4) - PoE Injector sold separately
- DC Power Input : 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length - Power sources sold separately
- Uplink Ports : 1x 1 Gigabit Ethernet RJ45
- Other Ports : 1x Reset Button, 1x USB
- Antenna Type : 2x Internal dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz
- Mounting Options : The AP-505 ships with a mount bracket pre-installed on the back of the unit.
- Mounts Included : Additional mount kits are sold separately
- Model Number : R2H39A
- Part Number : R2H39A, AP-505, AP-505-TAA, APIN0505
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-505 R2H39A US TAA Wi-Fi 6 802.11ax Internal Ant Unified Campus WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Power Adapter Not Included
