NEW HPE Aruba AP-503H R3V38A US Wi-Fi 6 802.11ax Internal Ant Hospitality WAP

~~$ 255.99~~
$ 105.99

20 in stock Call if you need more

Shipping: OVERNIGHT OPTION

Condition: New

Warranty: 365 days

SKU: NSN-2804 ASK FOR QUOTE

UPC: 190017395623

The NEW HPE Aruba R3V38A AP-503H is a dual-radio 802.11ax WiFi6 WAP is for high-performance wireless connectivity in the USA. With two internal semi-directional antennas offering peak single-antenna gains of 2.5 dBi in the 2.4 GHz band and 5.6 dBi in the 5 GHz band, it delivers fast data speeds of up to 1,201 Mbps.

The AP-503H supports both frequency bands - 2.GHz and GHz - ensuring seamless connections for various devices on your network. Ideal for businesses seeking efficient wireless solutions, this access point offers stable performance with its MIMO technology, while also complying with strict regulations to ensure security and reliability.

Get improved signal strength across your space without sacrificing speed or quality with the HPE Aruba R3V38A AP-503H Dual-Radio Access Point.

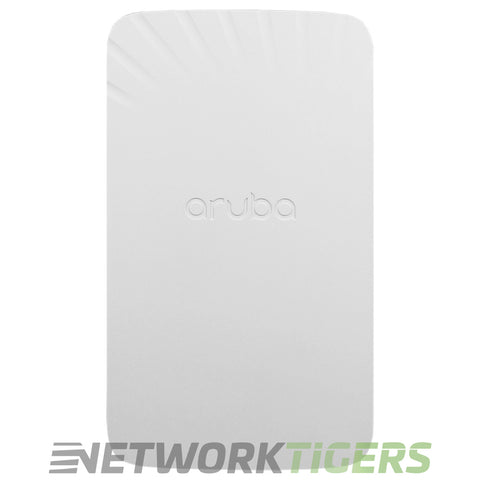

NEW HPE Aruba R3V38A AP-503H (US) Dual-Radio 802.11ax WiFi6 2x2 MIMO WAP

Wi-Fi Standard : 802.11ax (Wi-Fi 6)
Managed By : Aruba Central, Mobility Controller, or standalone
Suggested Use : Mid-range hospitality, branch, and teleworker deployments
Region : US
Radios : Dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
Spatial Streams per Radio : 2 (2SS) on both bands
Maximum Data Rate : Up to 1.5 Gbps wireless aggregate, 1.2 Gbps (5GHz HE80) and 287 Mbps (2.4GHz HE20) per radio
Bluetooth / IoT Radios : Bluetooth 5 (BLE5.0) and Zigbee (802.15.4), integrated semi-directional antenna, peak gain 2.5 dBi
PoE Standard : 802.3af (class 3) on uplink port E0
DC Power Input : 12Vdc (nominal, +/- 5%), 2.1mm/5.5mm center-positive circular plug
Uplink Ports : E0 Ethernet port (10/100/1000BASE-T)
Other Ports : E1-E2 two local Ethernet ports (10/100/1000BASE-T), serial console (proprietary micro-B USB)
Antenna Type : Integrated, semi-directional
Mounting Options : Sold Separately - R3V38A Mount Kits - R3V58A (Single-gang Wall-box), R3V61A (Dual-gang Wall-box, AP-503H), R3V60A (Desk Mount)
Mounts Included : None in box (AP-503H does not ship with any mounting brackets) - optional desk stand available separately, or bundled in the R7G97A Remote AP bundle
Model Number : R3V38A
Part Number : R3V38A, AP-503H, AP-503H-US, APINH503
Condition : New
