The HPE Aruba R4W01A Instant On AP22 (US) is a dual-band indoor access point with 802.11ax technology for high-speed Wi-Fi 6 connectivity. With MU-MIMO support, this AP can handle multiple devices simultaneously for efficient performance.
The AP offers up to 1.2 Gbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band, resulting in a maximum data rate of 1.7 Gbps overall.
Ideal for small to medium-sized businesses in the US market, this device provides reliable wireless coverage and fast speeds without sacrificing security or ease of use.

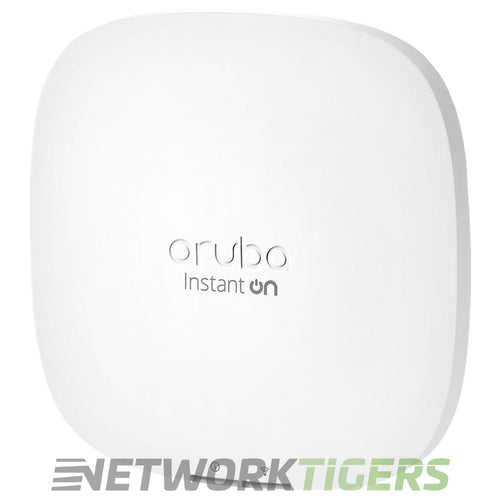

HPE Aruba R4W01A: Instant On AP22 (US) 2x2 Wi-Fi 6 Indoor Access Point.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Instant On mobile app (Android/iOS) or Cloud Portal
- Suggested Use : Small businesses, reimagined offices, schools, retail/hospitality, remote offices, hybrid classrooms, hotels and restaurants
- Region : US
- Radios : Dual radio for simultaneous dual-band operation, 1x 2.4 GHz radio + 1x 5 GHz radio, each 2x2 MIMO, plus integrated Bluetooth Low Energy radio
- Spatial Streams per Radio : 2x2 MIMO on each radio
- Maximum Data Rate : Up to 1.7 Gbps aggregate (2.4 GHz up to 574 Mbps, 5 GHz up to 1.2 Gbps with MU-MIMO support)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy (BLE) radio
- PoE Standard : 802.3af (class 3) - PoE Injector must be ordered separately
- DC Power Input : DC power connector - DC Adapter must be ordered separately
- Uplink Ports : 1x 1 Gigabit Ethernet port with PoE-in support (802.3af)
- Other Ports : Console port, Kensington security slot
- Antenna Type : Internal, down-tilt omni-directional antennas
- Antenna Ports : None, internal antenna model with no external connectors
- Antenna Options : Ships with white combined ceiling/wall mount clip (included), optional aesthetic flush mount sleeve R6P90A available, spare mount kits JW044A (Ceiling Rail) and Q9U25A (Low Profile Basic) available
- Mounts Included : Ships with a "Combined Ceiling and wall rail mount clip
- Model Number : R4W01A
- Part Number : R4W01A, AP22, AP22-US, APIN0505
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba R4W01A AP22 US Instant On Wi-Fi 6 802.11ax Internal Ant Indoor WAP as described above
- One (1) Wall Mount Clip Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website - Mount Bracket Not Included
- Power Injector Not Included
- Power Adapter Not Included
