The HPE Aruba R4W01A Instant On AP22 (US) is a dual-band indoor access point with 802.11ax technology for high-speed Wi-Fi 6 connectivity. With MU-MIMO support, this AP can handle multiple devices simultaneously for efficient performance.
The AP offers up to 1.2 Gbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band, resulting in a maximum data rate of 1.7 Gbps overall.
Ideal for small to medium-sized businesses in the US market, this device provides reliable wireless coverage and fast speeds without sacrificing security or ease of use.

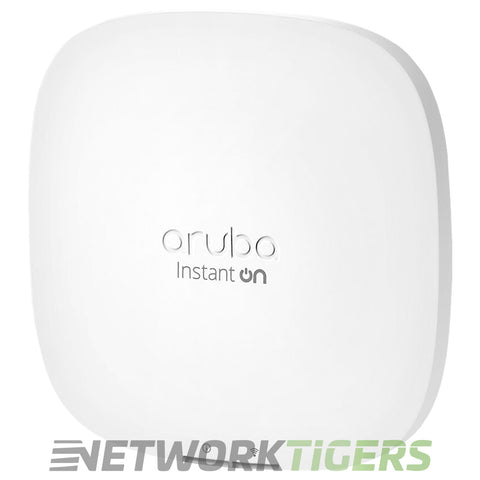

HPE Aruba R4W01A: Instant On AP22 (US) 2x2 Wi-Fi 6 Indoor Access Point.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Instant On mobile app (Android/iOS) or Cloud Portal
- Suggested Use : Small businesses, reimagined offices, schools, retail/hospitality, remote offices, hybrid classrooms, hotels and restaurants
- Region : US
- Radios : Dual radio for simultaneous dual-band operation, 1x 2.4 GHz radio + 1x 5 GHz radio, each 2x2 MIMO, plus integrated Bluetooth Low Energy radio
- Spatial Streams per Radio : 2x2 MIMO on each radio
- Maximum Data Rate : Up to 1.7 Gbps aggregate (2.4 GHz up to 574 Mbps, 5 GHz up to 1.2 Gbps with MU-MIMO support)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy (BLE) radio
- PoE Standard : 802.3af (class 3) - PoE Injector must be ordered separately
- DC Power Input : DC power connector - DC Adapter must be ordered separately
- Uplink Ports : 1x 1 Gigabit Ethernet port with PoE-in support (802.3af)
- Other Ports : Console port, Kensington security slot
- Antenna Type : Internal, down-tilt omni-directional antennas
- Antenna Ports : None, internal antenna model with no external connectors
- Antenna Options : Ships with white combined ceiling/wall mount clip (included), optional aesthetic flush mount sleeve R6P90A available, spare mount kits JW044A (Ceiling Rail) and Q9U25A (Low Profile Basic) available
- Mounts Included : Ships with a "Combined Ceiling and wall rail mount clip
- Model Number : R4W01A
- Part Number : R4W01A, AP22, AP22-US, APIN0505
- Condition : New
- One (1) NEW HPE Aruba R4W01A AP22 US Instant On Wi-Fi 6 802.11ax Internal Ant Indoor WAP as described above
