The HPE R8Q68A Aruba CX 6200M Series switch by Hewlett Packard Enterprise is a rack‑mountable Layer 3 switch featuring 24 x 1GbE PoE+ RJ‑45 ports and 4 x 10GbE SFP+ uplink interfaces. It supports 40 Gbps stacking bandwidth, 128 Gbps switching capacity, and up to 95.2 Mpps forwarding rate, powered by a quad‑core ARM Cortex‑A72 1.8 GHz CPU.
The switch includes modular slots for expansion and supports Virtual Switching Framework stacking. It provides a 16,000‑entry MAC address table and 8 MB packet buffer memory. Designed for campus and branch deployments, it delivers IEEE 802.3af/at PoE+ power to connected devices such as access points and IP phones. The 1U form factor supports standard rack mounting and redundant power supply options where configured.
HPE R8Q68A: Aruba 6200M 24G Class4 PoE 4SFP+ Switch.
- Network Ports : 24x 10/100/1000BASE-T Class 4 PoE RJ45, supporting up to 30W per port
- Uplink Ports : 4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256
- Management Ports : 1x RJ-45 Console, 1x USB-C Console, 1x OOBM, 1x USB Type-A Host
- Stack Size : 8 members (with other 24/48p 6200F and 6200M switches only
- Stacking Bandwidth : 40 Gbps
- CPU : Quad Core ARM Cortex A72 @ 1.8GHz
- AirFlow Direction : Front and side to back
- Fan Module Options : 2x Fan Tray Slots - 1x Fan Tray Included
- Power Supplies Included : 2x PSU Slots - 1x Min Required - None Included
- Power Supply Options : JL086A, JL087A
- PoE Budget : 740W
- Switching Capacity : 128 Gbps
- Forwarding Rate : Up to 95.2 Mpps
- MAC Address Table Size : 16,000
- Packet Buffer : 8 MB Packet Buffer Memory
- DRAM and Flash : 8 GB DDR4 16 GB eMMC
- Model Number : R8Q68A
- Part Number : R8Q68A
- Condition : New

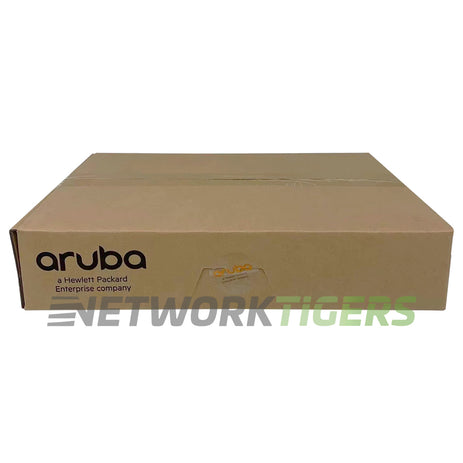

- One (1) NEW HPE R8Q68A Aruba CX 6200M Series 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch as described above
