NEW Dell S3148 48x 1GB RJ45 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMR Switch
New

NEW Dell S3148 48x 1GB RJ45 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMR Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2078
UPC: 884116251941

Overview

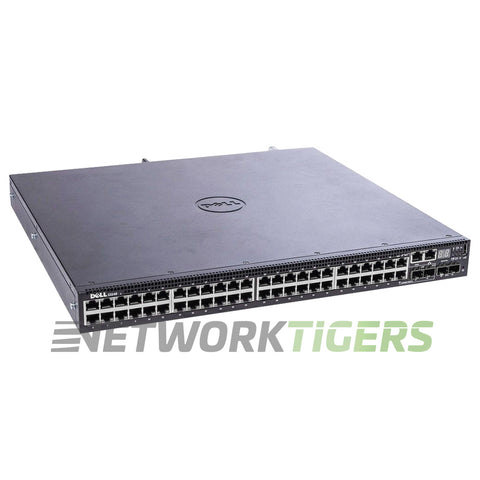

The NEW Dell S3148 switch offers 48 x 1G RJ45 ports, two additional combo ports with RJ45 and fiber options, plus two dedicated 10GbE SFP+ uplinks.

It delivers flexibility for scalable deployments by Supporting a hot-swappable expansion module slot for dual-port SFP+ or dual-port 10GBaseT configurations (module sold separately). The device ensures efficient data handling across networks with a switching capacity of up to 260 Gbps and forwarding rates reaching 193 Mpps.

A MAC address table size supporting up to either standard-mode storage at 56K entries or expanded L2 mode scaling to handle up to 80K addresses increases performance in layer-2-rich environments Networks benefit precise standards classes available-backed integrations.

NEW Dell S3148 48x 1GB RJ45 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMR Switch


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ45
  • Uplink Ports : 2x 1 Gigabit Ethernet Combo (SFP/RJ45), 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB
  • Stacking Ports : 2x Built in Stacking Ports (Rear of Switch)
  • Module Slots : 1x Hot swappable expansion module slot - supporting dual-port SFP+ or dual-port 10GBaseT (Module not included)
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
  • Fan Module Options : Redundant variable speed fans
  • Power Supplies Included : 2x PSU Slots - 1x 200W AC PSU Included
  • Switching Capacity : 260 Gbps
  • Forwarding Rate : 193 Mpps
  • MAC Address Table Size : 56,000 (80K in L2 scaled mode)
  • Alternative Dell Part Numbers : 210-AIMR
  • Model Number : S3148
  • Part Number : S3148, 210-AIMR
  • Condition : New


Included

  • One (1) NEW Dell S3148 48x 1GB RJ45 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMR Switch as described above
