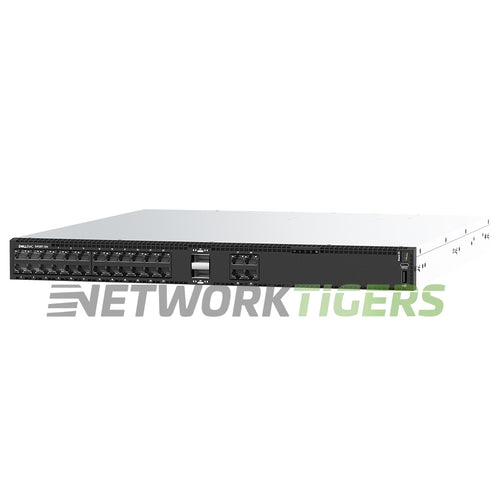

Dell S4128T-ON 28x 10GB Copper 2x 100GB QSFP28 F-B Air 210-ALTC OS10 Switch

Dell S4128T-ON 28x 10GB Copper 2x 100GB QSFP28 F-B Air 210-ALTC OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9746
UPC: 011110630049

Overview

The Dell S4128T-ON switch is a high-performance network device for data centers and enterprise environments. It offers 28x 10GB copper and 2x 100GB QSFP28 ports, providing fast connectivity options.

With a switching capacity of up to 960 Gbps and a forwarding rate of up to 720 Mpps, this switch ensures efficient packet handling even in demanding network scenarios. The MAC Address Table size, at around 272,000 entries, is also impressive.

The Dell S4128T-ON boasts low latency with an average delay of around 800 nanoseconds. This means that packets are processed quickly without significant delays or bottlenecks in transmission.

Dell S4128F-ON: 28x 10GbE SFP+, 2x 100GbE QSFP28, 2x AC PSU, 4x Fan module, Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal). Includes OS10 Licence.


Specifications

  • Network Ports : 28x 10 Gigabit Ethernet RJ-45
  • Uplink Ports : 2x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ-45 Console Management (RS232), 1x USB, 1x Mini USB
  • Product Family : EMC S-Series
  • Firmware Version : OS10 License Included
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Power Supplies Included : 2x AC PSU's Included - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal) 06FKHH
  • Switching Capacity : 960 Gbps
  • Forwarding Rate : 720 Mpps
  • MAC Address Table Size : 272,000
  • Latency : 800 nanoseconds
  • Rack Mounts : Not Included - 770-BBGY Rail Kit can be ordered separately.
  • Alternative Dell Part Numbers : 210-ALTC
  • Model Number : S4128T-ON
  • Part Number : S4128T-ON, 210-ALTC
  • Condition : Seller refurbished

Datasheet

More information on this Dell S4128T-ON.

Included

  • One (1) Seller Refurbished Dell S4128T-ON 28x 10GB Copper 2x 100GB QSFP28 F-B Air 210-ALTC OS10 Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) OS10 Installed and licensed

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
