NEW Dell S4128T-ON 28x 10GB 2x 100GB QSFP28 F-B Air 210-ALTC (No OS10) Switch
New

NEW Dell S4128T-ON 28x 10GB 2x 100GB QSFP28 F-B Air 210-ALTC (No OS10) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

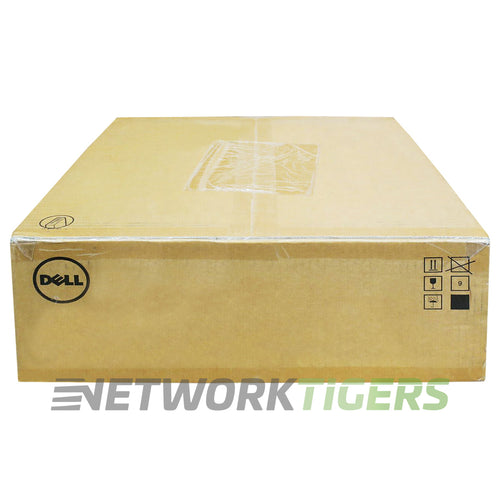

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9178
UPC: 011110630049

Overview

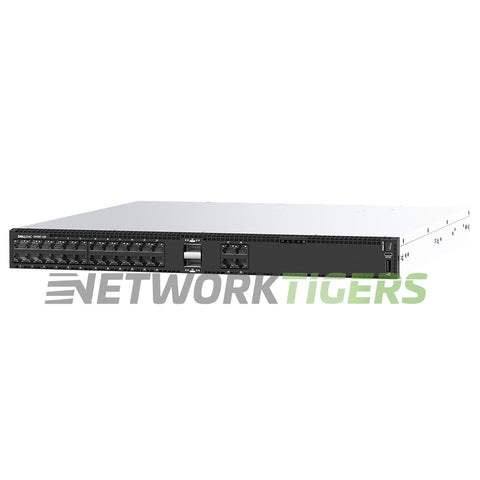

The Dell S4128T-ON switch offers high-performance networking capabilities with its 28x 10GB and 2x 100GB QSFP28 ports. With a switching capacity of up to 960Gbps, it provides fast and efficient data transfer rates for networks handling heavy workloads.

Featuring a forwarding rate of up to 720Mpps, the S4128T-ON ensures that packets are delivered swiftly without delays or bottlenecks. Its MAC address table size is impressive at an industry-leading capacity of up to 272,000 entries.

Designed for minimal latency, this switch boasts a meager delay rate of only 800 nanoseconds. Its air cooling system enhances thermal efficiency while maintaining optimal performance during operation.

Dell S4128F-ON: 28x 10GbE SFP+, 2x 100GbE QSFP28, 2x AC PSU, 4x Fan module, Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal). Does NOT include OS10 Licence.


Specifications

  • Network Ports : 28x 10 Gigabit Ethernet RJ-45
  • Uplink Ports : 2x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ-45 Console Management (RS232), 1x USB, 1x Mini USB
  • Firmware Version : Does NOT include OS10 Licence
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Power Supplies Included : 2x AC PSU's Included - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal) 06FKHH
  • Switching Capacity : 960Gbps
  • Forwarding Rate : 720Mpps
  • MAC Address Table Size : 272,000
  • Latency : 800 nanoseconds
  • Rack Mounts : Not Included - 770-BBGY Rail Kit can be ordered separately.
  • Alternative Dell Part Numbers : 210-ALTC
  • Model Number : S4128T-ON
  • Part Number : S4128T-ON, 210-ALTC
  • Condition : New


Included

  • One (1) NEW Dell S4128T-ON 28x 10GB 2x 100GB QSFP28 F-B Air 210-ALTC (No OS10) Switch as described above
