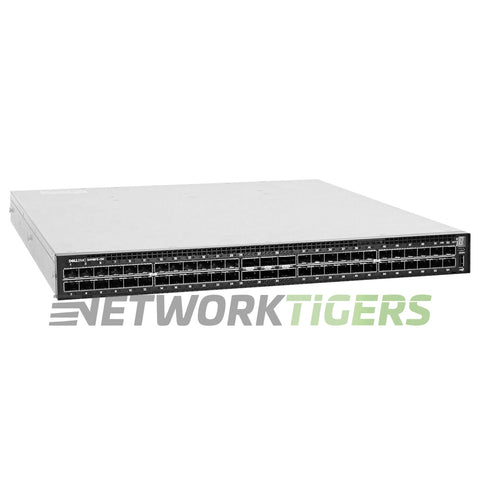

NEW Dell S4148FE-ON 48x 10GB SFP+ 2x 40GB QSFP+ 4x QSFP28 F-B No OS10 Switch

Ask for quote

Shipping: OVERNIGHT OPTION

Condition: New

Warranty: 365 days

SKU: NSN-9966

The Dell S4148FE-ON switch provides 48x 10GbE SFP+ ports, 2x QSFP+ (40Gb), and 4x QSFP28 (100Gb) uplinks. Its switching capacity reaches up to 1.76 Tbps with a forwarding rate of approximately 1320 Mpps.

The device supports a MAC address table size of up to 272,000 entries for high scalability in managing extensive networks. It features latency as low as 850 nanoseconds, suitable for instances requiring fast data transmission speeds across short distances while minimizing delay impact on applications reliant on efficiency or precision communications during their operations

Dell S4148FE-ON: 48x 10GbE SFP+, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fans. Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow). Does NOT include OS10.

Network Ports : 48x 10 Gigabit Ethernet SFP+
Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit Ethernet QSFP28
Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
Switch Version : Does NOT include OS10
AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
Fan Module Options : 4x Fan Module Included
Power Supplies Included : 2x AC PSU
Switching Capacity : 1.76 Tbps
Forwarding Rate : 1320 Mpps
MAC Address Table Size : 272,000
Latency : 850 nanoseconds
Alternative Dell Part Numbers : 210-ALSG
Model Number : S4148FE-ON
Part Number : S4148FE-ON, 210-ALSG
Condition : New
