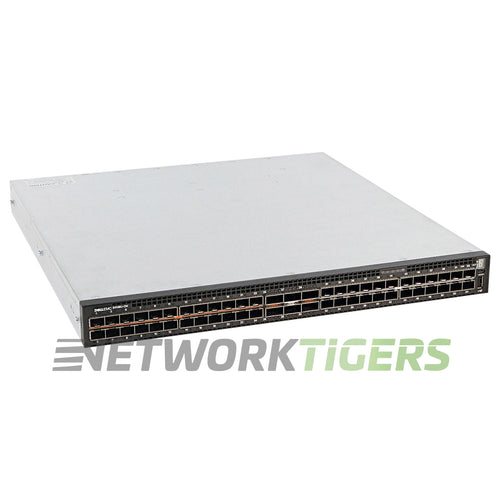

Dell S4148U-ON-RA 48x (24x Unified) SFP+ 2x QSFP+ 4x QSFP28 B-F No OS10 Switch

Dell S4148U-ON-RA 48x (24x Unified) SFP+ 2x QSFP+ 4x QSFP28 B-F No OS10 Switch

$ 2,378.99
$ 1,959.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9787

Overview

The Dell S4148U-ON-RA switch offers 48 (24 Unified) SFP+ ports, along with 2x QSFP+ and 4x QSFP28 ports. With a switching capacity of 1.76Tbps and a MAC address table size of up to 272,000 entries, this switch is designed for high-performance networking environments.

It boasts a forwarding rate of up to 1320 Mpps and latency as low as 800 nanoseconds for rapid data processing. The inclusion of PoE budget support provides power capabilities for connected devices such as IP cameras or access points. With these features, the Dell S4148U-ON-RA is ideal for organizations looking to optimize their network performance reliably and efficiently.

Dell S4148U-ON: 24x Unified port SFP+, 24x 10GbE SFP+, 2x QSFP+, 4x Unified port QSFP28, 2x AC PSU, 4x Fan module, PSU to I/O Panel Airflow. OS10 is NOT included.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+ (24x Unified SFP+, 24x 10G SFP+)
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Firmware Version : OS10 is NOT included
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Power Supplies Included : 2x AC PSU's Included - Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Alternative Dell Part Numbers : 210-ALSD, S4148U-ON RA, S4148U-ON-RA
  • Switching Capacity : 1.76Tbps
  • Forwarding Rate : 1320Mpps
  • MAC Address Table Size : 272,000
  • Latency : 800 nanoseconds
  • Rack Mounts : Included (1-RU)
  • Model Number : S4148U-ON-RA
  • Part Number : S4148U-ON-RA, 210-ALSD, S4148U-ON RA
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Dell S4148U-ON-RA 48x (24x Unified) SFP+ 2x QSFP+ 4x QSFP28 B-F No OS10 Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
