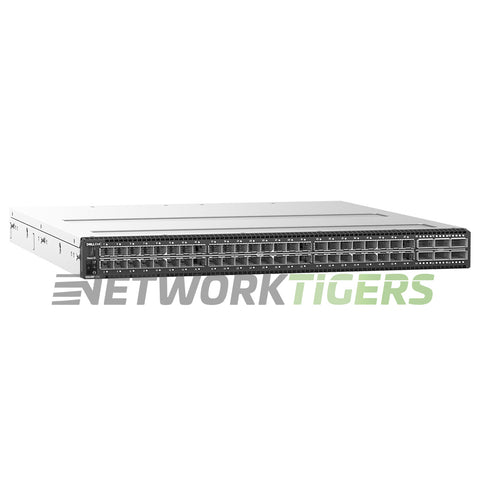

NEW Dell S5048F-ON 48x 25GB SFP+ 6x 100GB QSFP28 Front-to-Back Airflow Switch
New

NEW Dell S5048F-ON 48x 25GB SFP+ 6x 100GB QSFP28 Front-to-Back Airflow Switch

$ 2,324.99
$ 1,971.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3364

Overview

The Dell S5048F-ON is a high-performance switch for data centers and enterprise environments. It offers flexible connectivity options with 48x 25GB SFP+ ports and 6x 100GB QSFP28 ports.

This switch has a switching capacity of up to 3.6 Tbps, allowing for fast and reliable data transfer. It also boasts a forwarding rate of up to 2,678 Mpps, ensuring smooth network operation even during heavy traffic.

Equipped with a MAC address table size of 132,000 entries, the Dell S5048F-ON can accommodate large networks without effecting performance.

Dell S5048F-ON: 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal).


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Console Management, 1x Micro USB, 1x Gigabit Ethernet Management, 1x USB Type A
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Power Supplies Included : 2x Hot Swappable Dual Redundant Power Supplies - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Switching Capacity : 3.6Tbps
  • Forwarding Rate : Up to 2,678 Mpps
  • MAC Address Table Size : 132,000
  • Rack Mounts : Included (1-RU)
  • Model Number : S5048F-ON
  • Part Number : S5048F-ON
  • Condition : New


Included

  • One (1) NEW Dell S5048F-ON 48x 25GB SFP+ 6x 100GB QSFP28 Front-to-Back Airflow Switch as described above
