NEW Dell S5148F-ON-RA 210-ANCL 48x 25GB SFP28 6x 100GB QSFP28 B-F No OS10 Switch
New

NEW Dell S5148F-ON-RA 210-ANCL 48x 25GB SFP28 6x 100GB QSFP28 B-F No OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8132

Overview

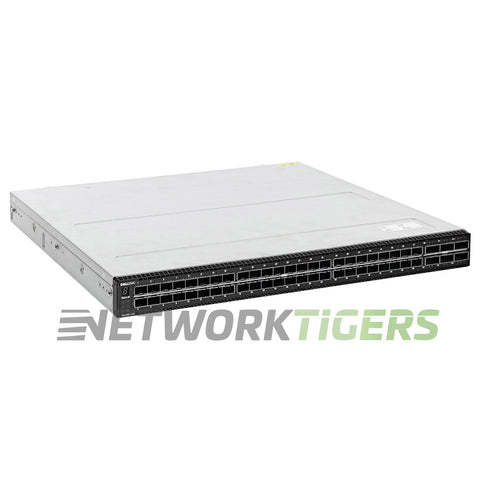

The Dell S5148F-ON-RA switch (alternatively known as part number 210-ANCL) offers powerful network capabilities for enterprise environments. With its switching capacity of 3.6Tbps and MAC Address Table Size up to 512,000, this switch can handle demanding workloads efficiently.

Equipped with 48x25GB SFP28 ports and six high-speed QSFP28, the S5148F provides flexible connectivity options for various networking needs. It is currently without an operating system (OS10). A license can be purchased separately.

One notable feature of this Dell switch is its Power over Ethernet budget capability, which enhances power management across connected devices.

Dell S5148F-ON: 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, 4x Fan Modules Included - Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed). OS10 is NOT included.


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Console Management, 1x Micro USB, 1x Gigabit Ethernet Management, 1x USB Type A
  • Firmware Version : OS10 is NOT included
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - PSU to I/O Panel Airflow
  • Power Supplies Included : 2x Hot Swappable Power Supplies Included - PSU to I/O Panel Airflow
  • Alternative Dell Part Numbers : 210-ANCL
  • Switching Capacity : 3.6Tbps
  • MAC Address Table Size : Up to 512,000
  • Rack Mounts : Included (1-RU)
  • Model Number : S5148F-ON-RA
  • Part Number : S5148F-ON-RA, 210-ANCL, S5148F-ON RA
  • Condition : New


Included

  • One (1) NEW Dell S5148F-ON-RA 210-ANCL 48x 25GB SFP28 6x 100GB QSFP28 B-F No OS10 Switch as described above
