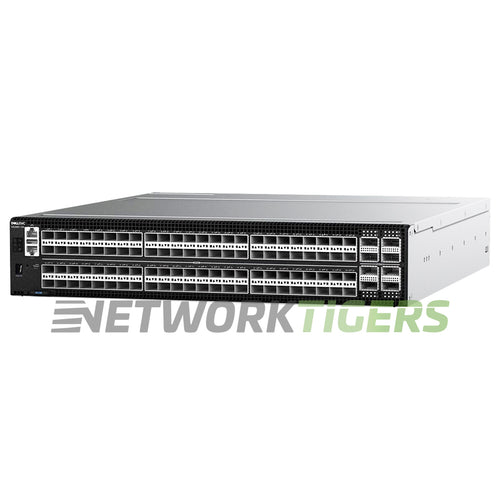

Dell S5296F-ON EMC S Series 96x 25GB SFP28 8x 100GB QSFP28 F-B Air OS10 Switch

Dell S5296F-ON EMC S Series 96x 25GB SFP28 8x 100GB QSFP28 F-B Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9216
UPC: 011110690487

Overview

The Dell S5296F-ON EMC S Series Switch delivers 3.2Tbps of switching capacity and handles up to 2.4 billion packets per second with low latency of just 850 nanoseconds, ensuring efficient data handling for high-speed networking applications.

Equipped with ninety-six ports supporting 25GbE (SFP28) and eight uplink ports at 100GbE (QSFP28), it offers scalability in dense network setups requiring fast throughput rates. With a MAC address table capable of storing up to 160,000 entries, the switch provides robust support for large-scale layer two networks while maintaining reliable performance.

Dell S5296F-ON: 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules. OS10 Included.


Specifications

  • Network Ports : 96x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 8x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Gigabit Ethernet Management, 1x RJ45 Management, 1x USB
  • Switch Version : OS10 Included
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Fan Module Options : 4x Fan Modules Included
  • Power Supplies Included : 2x AC PSU's Included
  • Switching Capacity : 3.2 Tbps
  • Forwarding Rate : 2.4 Bpps
  • MAC Address Table Size : 160000 entries
  • Latency : 850 nanoseconds
  • Model Number : S5296F-ON
  • Part Number : S5296F-ON
  • Condition : Seller refurbished

Datasheet

More information on this Dell S5296F-ON.

Included

  • One (1) Seller Refurbished Dell S5296F-ON EMC S Series 96x 25GB SFP28 8x 100GB QSFP28 F-B Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
