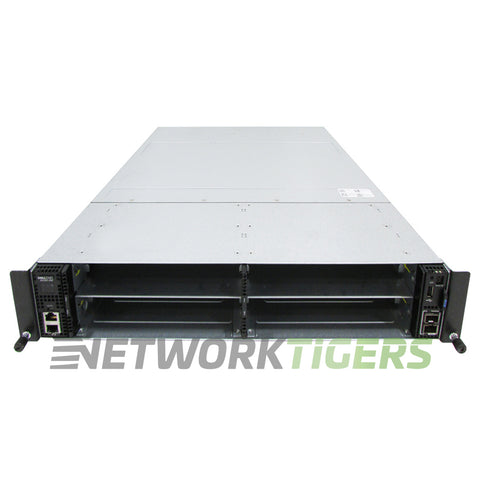

NEW Dell S6100-ON 210-AFWW 4x Module Slot 2x 10GB SFP+ Front-to-Back Air Switch
New

NEW Dell S6100-ON 210-AFWW 4x Module Slot 2x 10GB SFP+ Front-to-Back Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5466
UPC: 011110499165

Overview

The Dell S6100-ON 210-AFWW switch offers high performance with a switching capacity of 6.4Tbps and a forwarding rate of up to 4400 Mpps (Full Duplex). With four module slots, two 10GB SFP+ ports, and a front-to-back airflow design, it provides flexibility for network connectivity in data centers.

The MAC address table size can store up to 160,000 addresses while maintaining low latency at L2 -300ns and L3 -400ns levels. It is ideal for large-scale networking environments requiring efficient handling of data traffic. Enhance your network infrastructure with the reliability and efficiency this Dell switch delivers.

Dell S6100-ON: S6100-ON, 4 slots, 2xSFP+, Front-to-Back Airflow (IO to PSU Airflow / Normal Airflow), 2x AC PSU, OS 9.


Specifications

  • Network Ports : 2x 10 Gigabit Ethernet SFP+
  • Product Family : EMC S-Series
  • Management Ports : 1x RJ45 Console/Management with RS232 signaling, 1x Gigabit Management, 1x USB 2.0, 1x Micro USB
  • 4x Expansion Module Slots (Modules Not Included) - Following I/O modules are supported in each empty slot : 16x40GE QSFP+ I/O module, 8x100GE QSFP28 I/O module, 4x100GE CXP and 4x 100GE QSFP28 IO module
  • Firmware Version : OS 9
  • Fan Modules AirFlow Direction : 5x Fan Subsys with Front-to-Back Airflow (IO to PSU Airflow / Normal Airflow)
  • Power Supplies Included : 2x Hot Swappable AC Power Supplies Included - Front-to-Back Airflow (IO to PSU Airflow / Normal Airflow)
  • Switching Capacity : 6.4Tbps
  • Forwarding Rate : Up to 4400 Mpps (Full Duplex)
  • MAC Address Table Size : 160,000
  • Latency : L2 - 300ns, L3 - 400ns
  • Rack Mounts : Included (2-RU)
  • Model Number : S6100-ON
  • Part Number : S6100-ON, 210-AFWW
  • Condition : New


Included

  • One (1) NEW Dell S6100-ON 210-AFWW 4x Module Slot 2x 10GB SFP+ Front-to-Back Air Switch as described above
