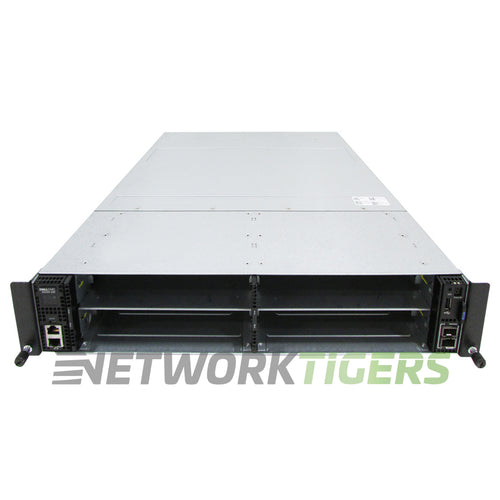

Dell S6100-ON-RA 210-AFWX 4x Module Slot 2x 10GB SFP+ Back-to-Front Air Switch

Dell S6100-ON-RA 210-AFWX 4x Module Slot 2x 10GB SFP+ Back-to-Front Air Switch

$ 809.99
$ 429.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6490
UPC: 011110499165

Overview

The Dell S6100-ON-RA 210-AFWX is a high-performance switch designed to meet the demands of modern networking environments. It features four module slots and two 10GB SFP+ ports for flexible connectivity options.

With a switching capacity of 6.4Tbps, this switch can easily handle heavy network traffic. It boasts a forwarding rate of up to 4400 Mpps (Full Duplex), ensuring fast and efficient data transfer.

Equipped with a MAC address table size of 160,000 entries, this switch allows for seamless communication between devices on your network. It offers low latency performance - just L2: 300ns and L3: 400ns – enabling quick response times in mission-critical applications.

Dell S6100-ON: S6100-ON, 4 slots, 2xSFP+, Back-to-Front Airflow (PSU to IO Panel Airflow / Normal Airflow), 2x AC PSU, OS 9.


Specifications

  • Network Ports : 2x 10 Gigabit Ethernet SFP+
  • Product Family : EMC S-Series
  • Management Ports : 1x RJ45 Console/Management with RS232 signaling, 1x Gigabit Management, 1x USB 2.0, 1x Micro USB
  • 4x Expansion Module Slots (Modules Not Included) - Following I/O modules are supported in each empty slot : 16x40GE QSFP+ I/O module, 8x100GE QSFP28 I/O module, 4x100GE CXP and 4x 100GE QSFP28 IO module
  • Firmware Version : OS 9
  • Fan Modules AirFlow Direction : 5x Fan Subsys with Back-to-Front Airflow (PSU to IO Panel Airflow / Normal Airflow)
  • Power Supplies Included : 2x Hot Swappable AC Power Supplies Included - Back-to-Front Airflow (PSU to IO Panel Airflow / Normal Airflow)
  • Alternative Dell Part Numbers : 210-AFWX
  • Switching Capacity : 6.4Tbps
  • Forwarding Rate : Up to 4400 Mpps (Full Duplex)
  • MAC Address Table Size : 160,000
  • Latency : L2 - 300ns, L3 - 400ns
  • Rack Mounts : Included (2-RU)
  • Model Number : S6100-ON-RA
  • Part Number : S6100-ON-RA, 210-AFWX, S6100-ON RA
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Dell S6100-ON-RA 210-AFWX 4x Module Slot 2x 10GB SFP+ Back-to-Front Air Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
