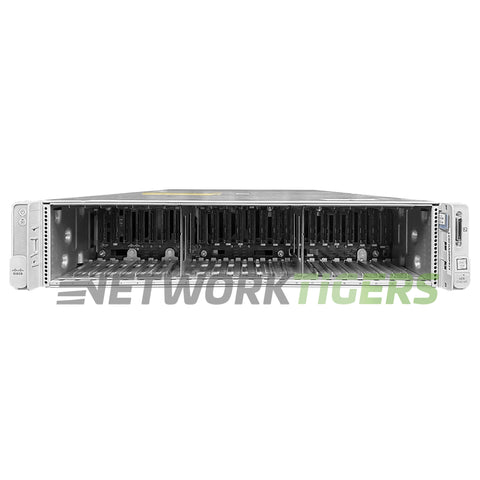

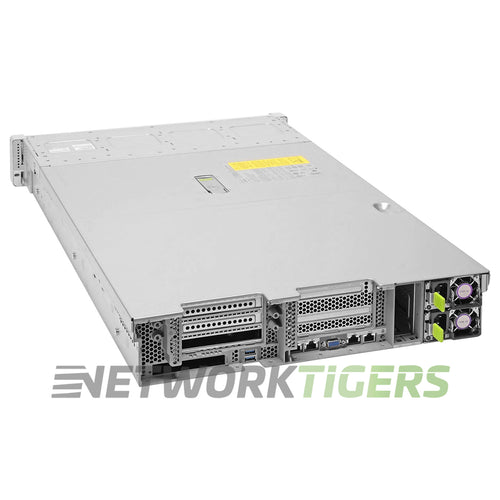

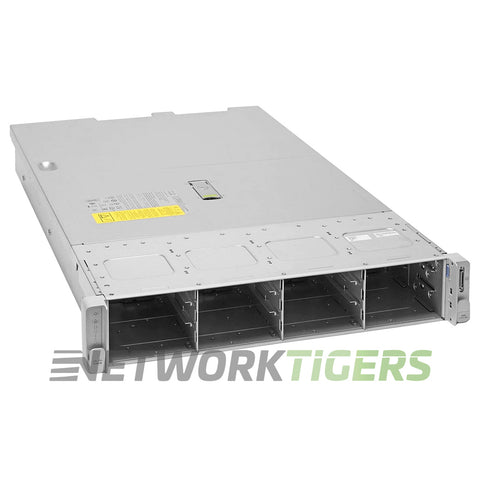

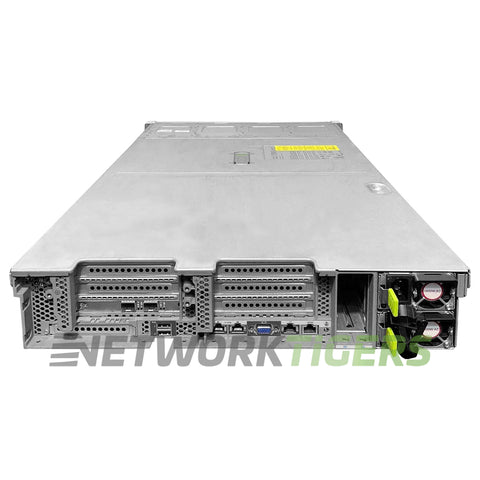

Cisco UCSC-C240-M5L UCS C240 M5 Series Server Chassis w/ 12x LFF Slots

$ 832.99
$ 821.99
7 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-2438

Overview

The Cisco UCSC-C240-M5L is a UCS C240 M5 Series server chassis with 12x LFF slots. This form factor supports high-speed interfaces for efficient data transmission.

This chassis is compatible with various processors, memory options, and storage configurations to suit specific use cases. With two PSU slots available (no power supplies included), this server can be customized based on power requirements. The ample storage capacity makes it suitable for robust network setups in diverse environments requiring reliable performance.

Cisco UCSC-C240-M5L: Large form-factor (LFF) drives, with 12-drive backplane. - Does not include power supply, CPU, memory (DIMMs or PMem), hard disk drives (HDDs), solid-state drives (SSDs), boot drives, SD cards, riser 1, riser 2, tool-less rail kit, or PCIe cards.


Specifications

  • Processor Type (Options) : 2nd Generation Intel® Xeon scalable family CPUs
  • Processor Slots : 2
  • Processors Included : None
  • Memory Type : DIMM
  • Memory Slots : 24
  • Memory Included : None
  • Storage Type : LFF
  • Storage Slots : 12 - Front-loading drive bays 1—12 support 3.5-inch SAS/SATA drives. Optionally, front-loading drive bays 1 and 2 support 3.5-inch NVMe SSDs. The two rear-loading drive bays support up to two 2.5-inch SAS/SATA drives; or up to two 2.5-inch NVMe SSDs.
  • Storage Included : None
  • External/Network Ports : 2x 10 Gigabit RJ-45 (On Motherboard), 1x USB (On Motherboard)
  • Card Slots : 6x PCI Slots (On 2 riser cards), 1x mLOM Slot
  • Cards Included : None
  • Raid Controller : Not Included
  • Power Supplies (Options) : 2x PSU Slots - None Included
  • Form Factor : 2U
  • Model Number : UCSC-C240-M5L
  • Part Number : UCSC-C240-M5L
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished Cisco UCSC-C240-M5L UCS C240 M5 Series Server Chassis w/ 12x LFF Slots as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Power Cord Not Included
  • Power Supplies Not Included
  • Rack Mount Rails Not Included
  • Network Modules Not Included
  • Hard Drive Not Included
