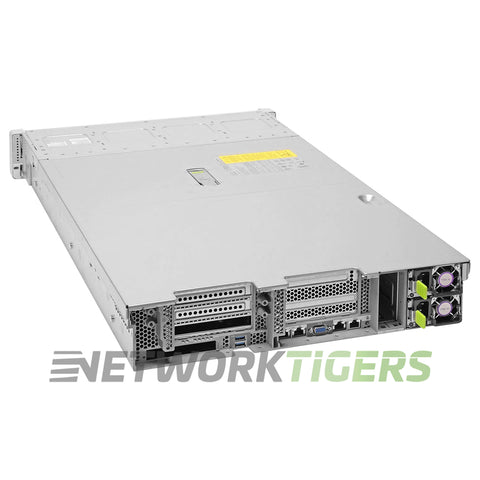

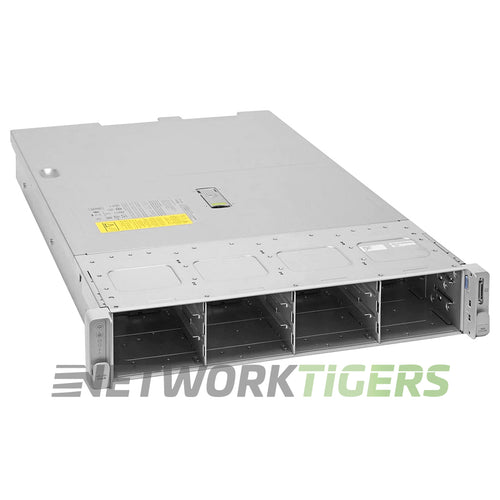

The Cisco UCSC-C240-M5L is a UCS C240 M5 Series server chassis with 12x LFF slots. This form factor supports high-speed interfaces for efficient data transmission.
This chassis is compatible with various processors, memory options, and storage configurations to suit specific use cases. With two PSU slots available (no power supplies included), this server can be customized based on power requirements. The ample storage capacity makes it suitable for robust network setups in diverse environments requiring reliable performance.
Cisco UCSC-C240-M5L: Large form-factor (LFF) drive compatible, with 12-drive backplane. - Does not include memory, hard disk drives (HDDs), solid-state drives (SSDs), boot drives, SD cards, tool-less rail kit, or PCIe cards.
Note: With this configuration you can only use the 2 x rear drive bays for NVME.
- Note : With this configuration you can only use the 2 x rear drive bays for NVME.
- Processor Type (Options) : 2nd Generation Intel Xeon scalable family CPUs
- Processor Slots : 2
- Processors Included : 2x Intel SR3J3 Xeon Gold 6132 2.60GHz 14-Core LGA3647 140W 19.25MB CPU w/ Cisco UCSC-HS-C220M5 Heatsink
- Memory Type : DIMM
- Memory Slots : 24
- Memory Included : 4x Cisco UCS-MR-X32G2RT-H 32GB DDR4-2933MHz RDIMM 2Rx4 (8Gb)/1.2v Memory
- CPU Carrier : 1x Cisco UCSC-M5-CPU-CAR UCS C Series M5 Server CPU Mounting Carrier
- Storage Type : LFF
- Storage Slots : 12 - Front-loading drive bays 1—12 support 3.5-inch SAS/SATA drives. Optionally, front-loading drive bays 1 and 2 support 3.5-inch NVMe SSDs. The two rear-loading drive bays support up to two 2.5-inch SAS/SATA drives; or up to two 2.5-inch NVMe SSDs.
- Storage Included : 2x UCS-M2-240GB M.2 SATA Micron G1 240GB Server SSD - 8x 800-37836-01 UCS 3.5 Inch LFF Hot-Swap SAS SATA Hard Drive Caddy Trays Included
- NVMe Enablement Kit : 1x Cisco UCSC-RNVME-240M5 UCS C240 M5 Rear NVMe Backplane Assembly / Cable Kit
- External/Network Ports : 2x 10 Gigabit RJ-45 (On Motherboard), 1x USB (On Motherboard)
- Card Slots : 6x PCIe Slots (provided via 2 riser cards), 1x mLOM Slot
- Cards Included : 1x Cisco UCSC-PCI-1-C240M5 Server Riser Board with 3x PCIe Slots (x8, x16, x8), 1x Cisco UCSC-PCI-2C-240M5 Riser 2C 3 PCIe slots (3 x8) Server Riser Board.
- Storage Controller : 1x UCSC-SAS-M5HD 12 Gbps SAS (SAS-3)
- Power Supplies (Options) : 2x UCSC-PSU1-1050W UCS Series 1050W AC Server Power Supplies Included
- Additional Included Parts : 2x Cisco UCS-M10CBL-C240M5 Nvidia Tesla M10 Cable Included, 1x Cisco UCSC-BPLD-L12 Storage Backplane Included
- Form Factor : 2U
- Model Number : UCSC-C240-M5L
- Part Number : UCSC-C240-M5L
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco UCSC-C240-M5L UCS C240 M5 12x LFF Slot Server w/ 2x Intel SR3J3 CPU's as described above
- Two (2) Power Cords Included
- Two (2) UCSC-PSU1-1050W AC Power Supplies Included
- Two (2) Intel SR3J3 Xeon Gold 6132 CPU's Included
- Two (2) CPU Heatsinks Included
- Four (4) UCS-MR-X32G2RT-H 32GB RDIMM Included
- Two (2) UCS-M2-240GB M.2 SATA SSD Included
- One (1) UCSC-M5-CPU-CAR CPU Mounting Carrier Included
- One (1) NVMe Enablement Kit Included
- One (1) UCSC-PCI-1-C240M5 Riser Board Included
- One (1) UCSC-PCI-2C-240M5 Riser Board Included
- One (1) UCSC-SAS-M5HD Storage Controller Included
- One (1) Cisco UCSC-BPLD-L12 Storage Backplane Included
- One (1) Securiy Bezel Included
- Two (2) UCS-M10CBL-C240M5 Nvidia Tesla M10 Cable Included
- Eight (8) Hard Drive Caddies Included
- One (1) UCSC-RAILB-M4 rail kit Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Rack Mount Rails Not Included
- Network Modules Not Included
- Hard Drives Not Included
