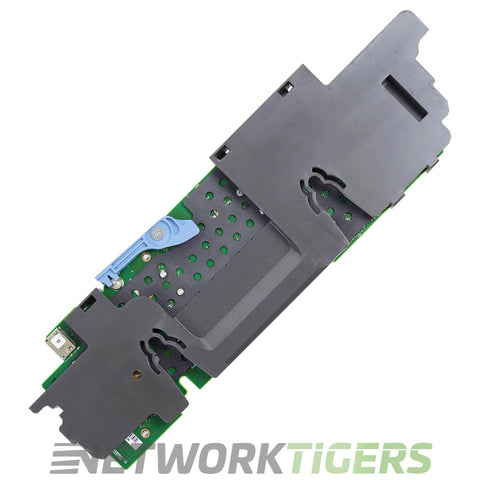

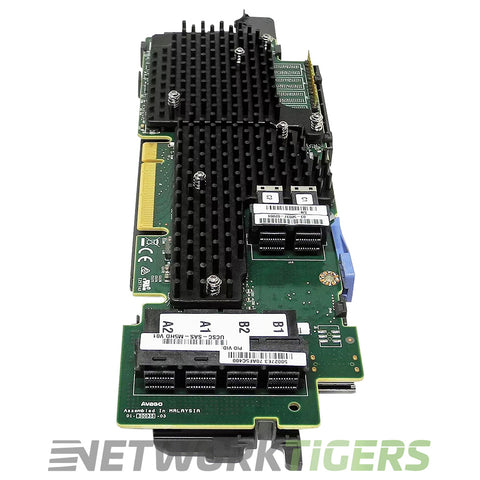

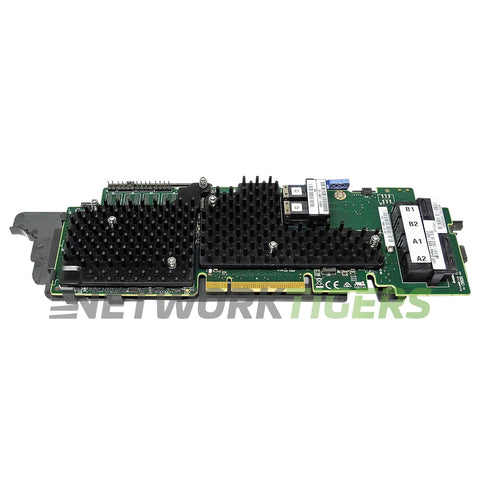

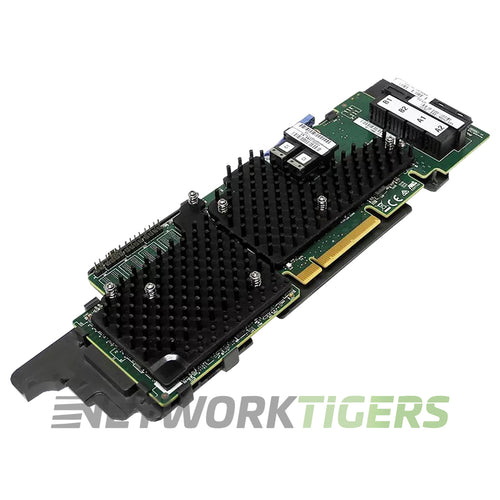

Cisco UCSC-SAS-M5HD 12 Gbps SAS (SAS-3) Server Raid Controller

Cisco UCSC-SAS-M5HD 12 Gbps SAS (SAS-3) Server Raid Controller

$ 79.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-0072 ASK FOR QUOTE
UPC: 889728003049

Overview

The Cisco UCSC-SAS-M5HD is a RAID controller manufactured by Cisco. It uses a mezzanine form factor and supports 12 Gb/s SAS interfaces for data transmission.

This hardware RAID controller is compatible with select Cisco UCS M5 series servers. It provides multiple internal ports to support direct connectivity with backplane drive bays, allowing configuration of redundant arrays across supported hard drives or SSDs. The unit receives power via the host system's board interface and mounts internally within designated mezzanine slots on supported chassis without requiring external cabling or additional enclosures.

Cisco UCSC-SAS-M5HD 12 Gbps SAS (SAS-3) Server Raid Controller.


Specifications

  • Interface (SAS or SATA) : SAS
  • Data Transfer Rate : 12 Gb/s SAS (SAS-3)
  • Drives Supported : Up to 26 internal SAS/SATA drives (Internal)
  • Form Factor : Modular SAS HBA card for integration into Cisco UCS C-Series M5 servers.
  • Designed For : Cisco UCS C-Series M5
  • Model Number : UCSC-SAS-M5HD
  • Part Number : UCSC-SAS-M5HD
  • Condition : Seller refurbished

Datasheet

More information on this Cisco UCSC-SAS-M5HD.

Included

  • One (1) Seller refurbished Cisco UCSC-SAS-M5HD 12 Gbps SAS (SAS-3) Server Raid Controller as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
