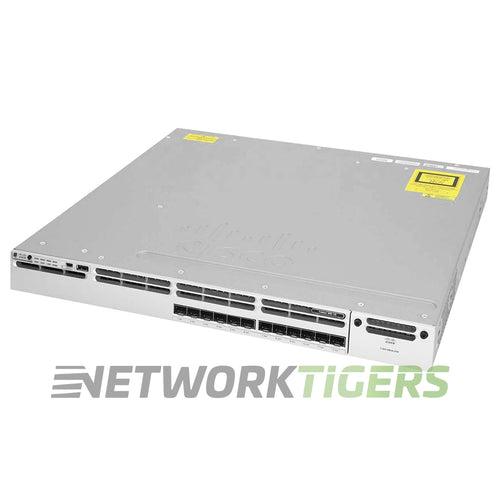

The Cisco WS-C3850-12XS-S is a 12-port 10 Gigabit SFP+ switch from the Catalyst 3850 Series. It provides 12 SFP+ ports that run at 10 Gigabit, or at 1 Gigabit with SFP optics, and ships with a 350 W AC power supply. It runs the IP Base version, covering Layer 2 switching plus basic Layer 3 routing.
The switch delivers 320 Gbps of switching capacity and a 227.28 Mpps forwarding rate, with 4 GB of DRAM and 4 GB of flash. Up to nine Catalyst 3850 switches can join one StackWise-480 stack with 480 Gbps of stack bandwidth, managed as a single switch, and StackPower lets stacked switches share their power supplies. The 1RU chassis ships with rack mount brackets and three FAN-T1 fan modules, and uplinks come from an optional network module in the front slot, which is not included.
For uplinks, the Cisco C3850-NM-4-10G module adds four 10 Gigabit SFP+ ports. A second Cisco PWR-C1-350WAC power supply gives redundancy, and the NEW Cisco STACK-T1-50CM cable joins it to a stack. For a different software version, see the IP Services Cisco WS-C3850-12XS-E. To buy this model new, see the NEW Cisco WS-C3850-12XS-S.
This seller refurbished switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 12x 10 Gigabit Ethernet SFP+
- Uplink Ports : Through an optional network module - see Module Options
- Management Ports : 1x Serial Console RJ45, 1x Gigabit Ethernet Management, 1x mini-USB Console (Type B), 1x USB (Type A)
- Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors | Stacking bandwidth is 480 Gbps
- Stacking Cable Options : CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) - Cables sold separately
- Module Slots : 1x Network Module Slot - Modules are not included
- Module Options : Only the C3850-NM-4-10G (4x 10GB SFP+) is compatible with this switch.
- Switch Version : IP Base Version
- AirFlow Direction : Front-to-Back (Port-Side Intake)
- Fan Module Options : 3x FAN-T1 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-350WAC Power Supply included - 2x Slots
- Power Supply Options : PWR-C1-1100WAC, PWR-C1-715WAC, PWR-C1-350WAC
- Switching Capacity : 320 Gbps
- Forwarding Rate : 227.28 Mpps
- MAC Address Table Size : 32,000
- DRAM and Flash : 4 GB DRAM, 4 GB Flash
- Model Number : WS-C3850-12XS-S
- Part Number : WS-C3850-12XS-S, WS-C3850-12XS-S=, WS-C3850-12XS-S-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco WS-C3850-12XS-S Catalyst 3850 12x 10GB SFP+ 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
