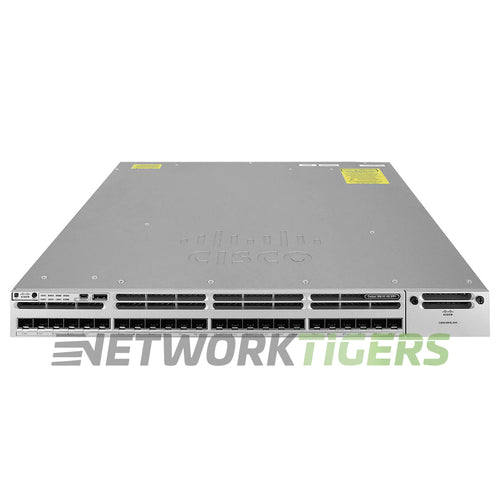

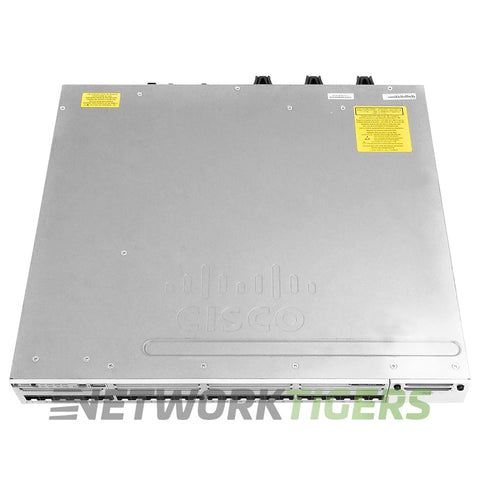

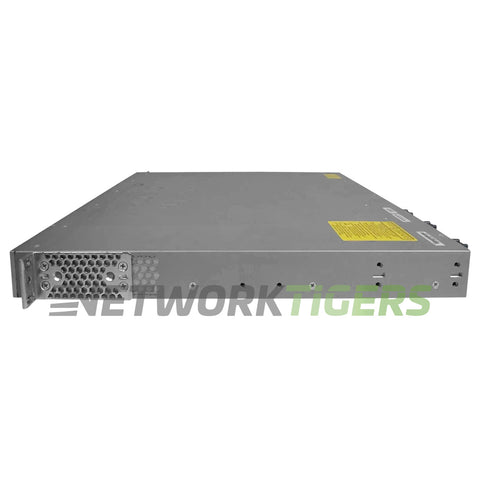

Cisco WS-C3850-24S-S Catalyst 3850 24x 1GB SFP 1x Expansion Module Slot Switch

Cisco WS-C3850-24S-S Catalyst 3850 24x 1GB SFP 1x Expansion Module Slot Switch

$ 1,048.99
$ 881.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-2159
UPC: 882658684609

Overview

The Cisco WS-C3850-24S-S Catalyst 3850 switch is a reliable choice for small to medium-sized networks. Its 24x 1GB SFP ports and one expansion module slot offer flexible connectivity options.

This switch has a switching capacity of up to 92 Gbps, ensuring fast and efficient data transfer within your network. The forwarding rate is impressive at around 68.4 Mpps (million packets per second), enhancing the overall performance of your network.

With a MAC address table size of up to 32,000 entries, this switch can handle large-scale deployments without any issues or bottlenecks in communication between devices.

Cisco Catalyst WS-C3850-24S-S: Stackable 24x SFP Ethernet ports, with 350WAC power supply 1 RU.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet SFP
  • Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
  • Management Ports : 1x Serial Console RJ-45, 1x Gigabit Ethernet Management, 1x mini-USB Console (Type B), 1x USB (Type A)
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately - CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) | Stacking bandwidth is 480 Gbps
  • Module Slots and Options : 1x Expansion Module Slots - Modules are not included
  • Expansion Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+)
  • Fan Modules AirFlow Direction : 3x C3850-FAN-T1 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-350WAC Power Supply included - 2x Slots - Options are - PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC, PWR-C1-440WDC
  • DRAM : 4GB
  • Switching Capacity : 92 Gbps
  • Forwarding Rate : 68.4 Mpps
  • MAC Address Table Size : 32,000
  • Flash : 2GB
  • Rack Mounts : Included (1-RU)
  • Model Number : WS-C3850-24S-S
  • Part Number : WS-C3850-24S-S, WS-C3850-24S-S=, WS-C3850-24S-S-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco WS-C3850-24S-S Catalyst 3850 24x 1GB SFP 1x Expansion Module Slot Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
