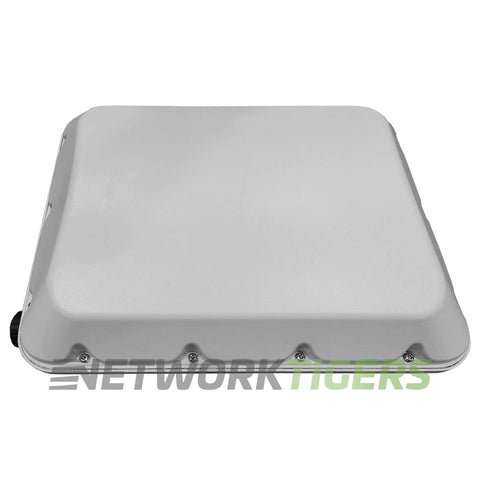

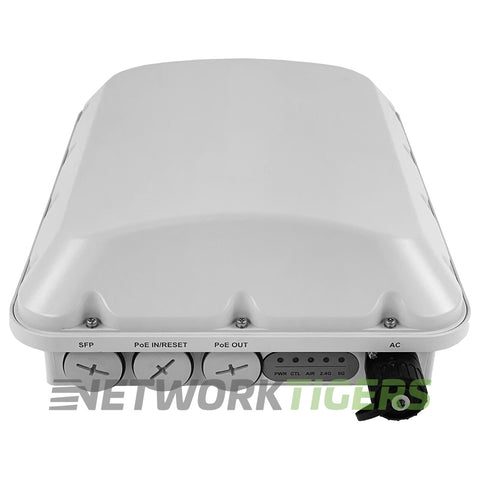

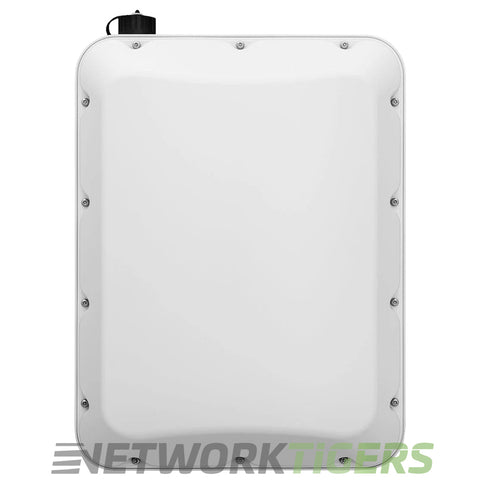

The Ruckus 901-T750-US02 is an outdoor wireless access point with a 4x4:4 form factor from Ruckus. It supports Wi-Fi standards IEEE 802.11a/b/g/n/ac/ax and delivers transmission speeds up to 2400 Mbps on the 5GHz band using Wi-Fi 6 (802.11ax). Backhaul speed reaches up to 2.56Gbps in supported configurations.
Compatible with both the 2.4GHz and 5GHz bands, this model features BeamFlex+ adaptive antennas capable of over 4000 unique patterns per band, including polarization diversity for signal optimization based on client location or interference conditions. The unit operates within the US regulatory domain and can be pole- or wall-mounted depending on deployment needs; power options include PoE++.
Ruckus 901-T750-US02: RUCKUS T750 Wi-Fi 6 Outdoor Wireless Access Point, 4x4:4 Stream, Omnidirectional Beamflex+ coverage, 2.4GHz and 5GHz concurrent dual band, (1x) 2.5G Ethernet port, (1x) 10/100/1000 Ethernet port, 100-240 Vac, POE in and PSE out, Fiber SFP/SFP+, IP-67 Outdoor enclosure, -40 to 65C Operating Temperature. No GPS functionality. Mounting bracket included. Does not include power adapter.
- Wi-Fi Standard : Wi-Fi 6 802.11ax
- Managed By : SmartZone, ZoneDirector, Cloud, Standalone, or Unleashed
- Suggested Use : Outdoor high density venues like airports, amusement parks, stadiums, outdoor arenas, and other dense urban environments, IP-67 rated for outdoor deployment
- Region : US
- Radios : 2x Radios - 1x 2.4GHz and 1x 5GHz, running dual concurrent
- Spatial Streams per Radio : 4 streams on both 2.4GHz and 5GHz using 4x4 by 4, for 8 total combined
- Maximum Data Rate : 1148 Mbps on 2.4GHz and 2400 Mbps on 5GHz
- Bluetooth / IoT Radios : Onboard BLE and Zigbee, with a pluggable IoT module for future expansion, this SKU does not include GPS
- PoE Standard : 802.3at Class 7 for full functionality with PSE out, 802.3at with reduced functionality without PSE out is also supported - Optional 902-0180-US00 (60W single-port) or 902-1180-US00 (60W multi-gigabit, 2.5/5/10-BaseT) available separately
- Uplink Ports : 1x 2.5 Gigabit Ethernet (802.3at Class 7 PoE) RJ-45, and 1x 10/100/1000 Mbps Ethernet port, plus SFP and SFP+ fiber ports for 1Gbps or 10Gbps backhaul
- Other Ports : 1x USB 2.0 port, Type A, plus a 1x GbE PoE output port (PSE) for daisy chaining devices like cameras or other APs
- Antenna Type : BeamFlex+ adaptive antennas with polarization diversity, internal omni-directional pattern with over 4000 unique patterns, up to 1.6dBi gain on 2.4GHz and 3.4dBi on 5GHz
- Mounting Options : Pole Mount, Wall Mount, or Flat Surface mount, using bracket included in the box, optional 902-0134-0000 (weatherized aluminum, 180 degree adjustment) or 902-0125-0000 (secure articulating bracket) available separately
- Mounts Included : Mounting bracket is included in the box with the AP
- Model Number : 901-T750-US02
- Part Number : 901-T750-US02
- Condition : New
- One (1) NEW Ruckus 901-T750-US02 Wi-Fi 6 802.11ax Outdoor WAP w/ 2.56Gbps Backhaul as described above
