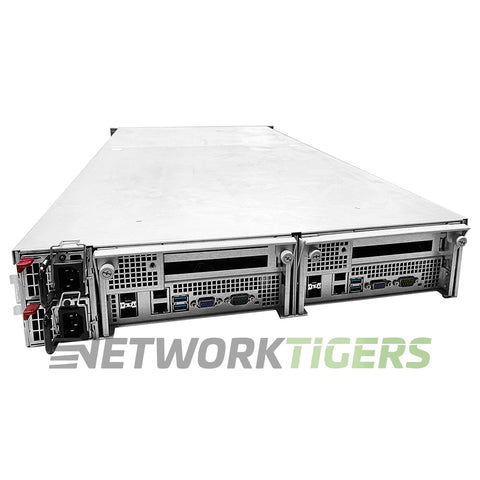

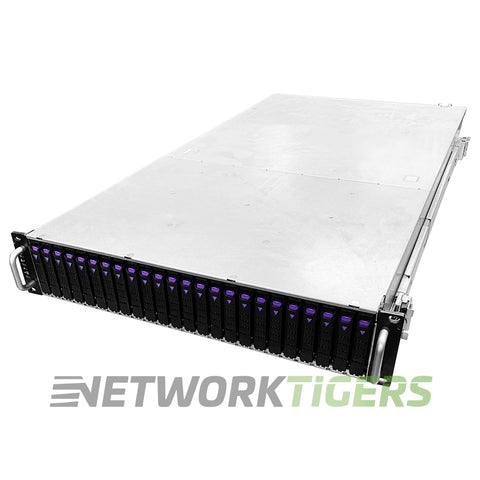

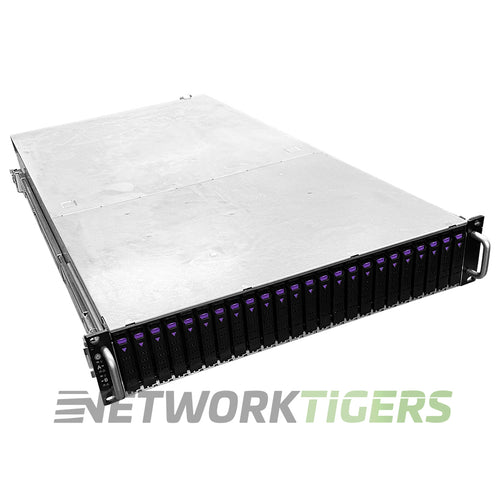

AIC HA202-PH 24x Slot High Availability Storage Server w/ 2x Dual CPU 48GB Nodes

AIC HA202-PH 24x Slot High Availability Storage Server w/ 2x Dual CPU 48GB Nodes

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-3459

Overview

The AIC HA202-PH 24x Slot High Availability Storage Server has two dual CPU 48GB nodes to handle heavy workloads efficiently. This server is designed for reliability and performance, making it suitable for businesses looking to maximize their storage capabilities.

With high availability features, this server ensures that data remains accessible at all times without interruptions. With its robust design and powerful processing capabilities, the AIC HA202-PH Storage Server is a solid choice for organizations needing reliable storage solutions.

The included dual CPUs provide additional power to support demanding tasks effectively.

AIC HA202-PH 24x Slot High Availability Storage Server w/ 2x Dual CPU 48GB Nodes


Specifications

  • Processor (Options) : per node - 2x Intel Xeon Processors - E5-2630 v3 per node - Supports CPU TDP up to 120W. Two nodes in the server. 4x Total CPU's
  • Drive Slots : 24x 2.5 Inch Slots (Whole Unit) (Drives are not included) with Hard drive Caddies
  • Expansion Slots : 2x PCIe 3.0 Slots (Per Node) - 4x Total Slots - Expansion Modules/ Cards are not included.
  • Riser Card : 1x RC-PE2U05-TY Per Node - 2x 16 PCIe Slots - 2x Total Riser Cards
  • System Memory (Per Node) : 4x Memory Channels per CPU Socket, 12x DIMM Slots - 6 x 8GB DIMMs per Node
  • Motherboard : 1x Panasonic DB-PEG303-TY Motherboard per node - 2x Total Motherboards
  • Ports : (Per Node) 2x USB 3.0 Type A, 1x External DB-15 VGA, 1x External DB-9 COM (Serial)
  • Fans : 2x 60x 56mm Easy Swap Fans (per node) - 4x Total Fans
  • Power Supply : 2x 1300W AC PSU
  • Network Ports : (Per Node) 2x 10GB SFP+ LAN, 2x 1GB RJ45 LAN
  • Form Factor : 2-RU
  • Rack Mount Hardware : Rails are included
  • Model Number : HA202-PH
  • Part Number : HA202-PH
  • Condition : Seller refurbished

Datasheet

More information on this AIC HA202-PH.

Included

  • One (1) Seller refurbished AIC HA202-PH 24x Drive Bay High Availability Storage Server as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Rails Included
  • Twenty-four (24) Caddies
  • Two (2) Nodes installed

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Hard drives Not Included
