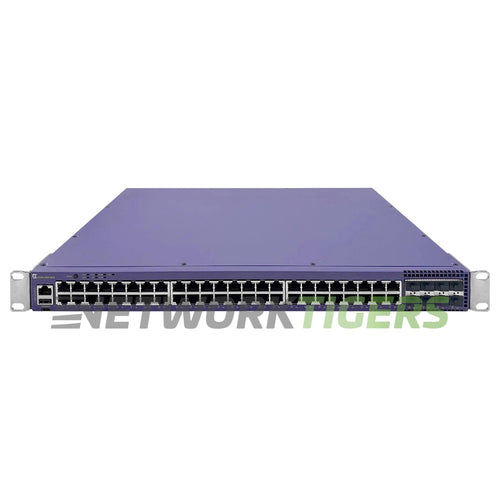

The Extreme Networks 5320-48P-8XE is a fixed-configuration Ethernet switch with 48x 1GbE PoE+ RJ-45 ports and 8x 10GbE SFP+ uplink interfaces. It delivers 256 Gbps switching capacity and supports high-speed Layer 2 and Layer 3 forwarding in a compact rack-mount form factor.
The switch provides PoE+ power over all 48 copper ports for connected devices such as access points, IP phones, and cameras. It supports stacking of up to eight units, a forwarding rate of 190.5 Mpps, and a MAC address table size of 32,000 entries. The system supports up to 4,059 VLANs and includes module slots for expansion.
Extreme 5320-48P-8XE: 5320 Universal Switch with 48 x 10/100/1000BASE-T Full / Half-Duplex ports, 802.3at 30W PoE ports, 8 x 1/10Gb SFP+ ports (includes 2 x Stacking ports @10Gb), 1 internal fixed AC PSU, fixed fan modules, 2-post rack-mount kit, Base software license.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45 (802.3at, 30W) - MACsec-capable
- Uplink Ports : 8x 10 Gigabit Ethernet SFP+ (includes 2 x Stacking ports) - MACsec-capable - 100Mb operation supported on last 4 uplink ports
- Management Ports : 1x Serial Console Port (RJ-45), 1x USB A Port for management or external USB flash, 1x USB Micro-B Console Port
- Stacking Ports : Uplink Ports can be used for stacking.
- Stacking Cable Options : 10 Gbps SFP+ cables can be used for stacking (either direct-attach copper or fiber)
- Stack Members : Up to 8 switches
- Switch Version : Base
- Fan Module Options : Fixed
- Power Supplies Included : 1x Internal Fixed AC PSU
- PoE Budget : 740W
- Switching Capacity : 256 Gbps
- Forwarding Rate : 190.5Mpps
- MAC Address Table Size : 32,000
- VLAN's : 4,059
- Model Number : 5320-48P-8XE
- Part Number : 5320-48P-8XE
- Condition : Seller refurbished
- One (1) Seller refurbished Extreme 5320-48P-8XE 5320 Series 48x 1GB PoE+ RJ-45 8x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
