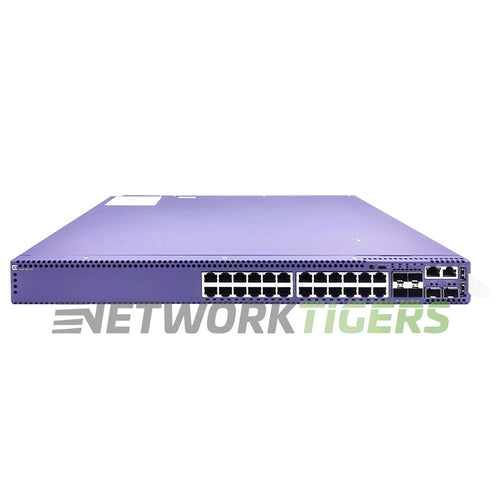

Extreme 5420F-24P-4XE 5420 Series 24x 1GB PoE RJ45 4x 10GB SFP+ Switch

Extreme 5420F-24P-4XE 5420 Series 24x 1GB PoE RJ45 4x 10GB SFP+ Switch

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-2440


The Extreme 5420F-24P-4XE switch is designed for high-performance networking needs, featuring 28 ports, including PoE RJ45 and SFP+ options. With a PoE budget ranging from 380W to 720W depending on PSU configuration, this switch can support power-hungry devices in your network setup.

The Switching Capacity of up to 208 Gbps ensures smooth data flow even in heavy usage scenarios, while the Forwarding Rate of up to 154.8 Mpps guarantees fast packet processing speeds. Whether you need reliable connectivity for your business or organization, the Extreme series offers robust performance at an affordable price point compared with other brands.

Extreme 5420F-24P-4XE: 5420 Universal Switch with 24 x 10/100/1000BASE-T full/half duplex 802.3at 30W PoE ports, includes 4 x 1/10Gb SFP+ uplink ports, 2 x Stacking/SFP-DD ports, 1 internal fixed PSU, one unpopulated PSU slot, fixed fan module, Base software license.


  • Network Ports : 24x 1 Gigabit Ethernet PoE RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ45 Serial Console, 1x Out of Band Management RJ45, 2x USB A, 1x USB Micro-B Console
  • Stacking Ports : 2x Stacking/SFP-DD Ports
  • Product Family : 5420 Series
  • Power Supplies Included : 1x Fixed Internal 660W AC PSU - 1x Unpopulated PSU Slots - 2nd PSU = XN-ACPWR-600W
  • PoE Budget : 380W (Single PSU) 720W (2 PSU's)
  • Switching Capacity : 208 Gbps
  • Forwarding Rate : 154.8 Mpps
  • Rack Mounts : Included (1-RU)
  • Model Number : 5420F-24P-4XE
  • Part Number : 5420F-24P-4XE
  • Condition : Seller refurbished


  • One (1) Seller refurbished Extreme 5420F-24P-4XE 5420 Series 24x 1GB PoE RJ45 4x 10GB SFP+ Switch as described above
  • One (1) Power Cord Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
