The Cisco C9105AXW-B is a Wi-Fi 6-wall plate wireless access point with internal antennas. It operates on both the 2.4 GHz and 5 GHz bands, offering a maximum data rate of up to 1.488 Gbps, with PHY data rates of up to 80 MHz in the 5 GHz band and 20 MHz in the 2.4 GHz band.
This device is designed for US regulatory domains, providing reliable connectivity and high-speed application performance.
By leveraging its advanced technology, this AP delivers robust wireless coverage without sacrificing speed or stability in demanding environments. Its compact design seamlessly blends into any setting while ensuring optimal network performance throughout your space.

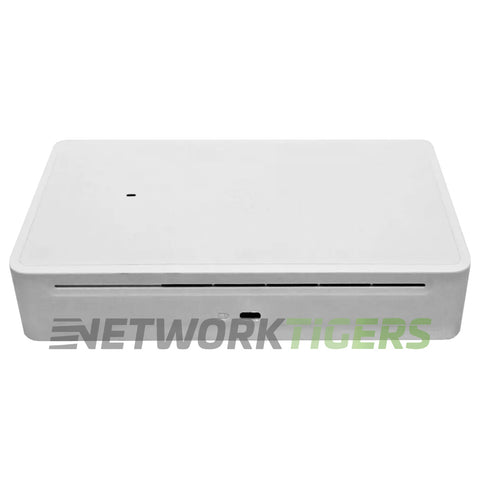

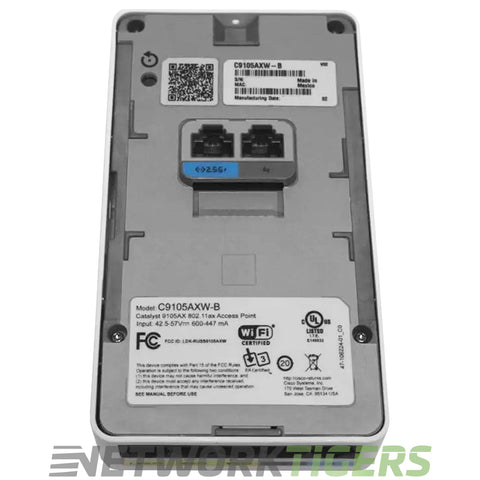

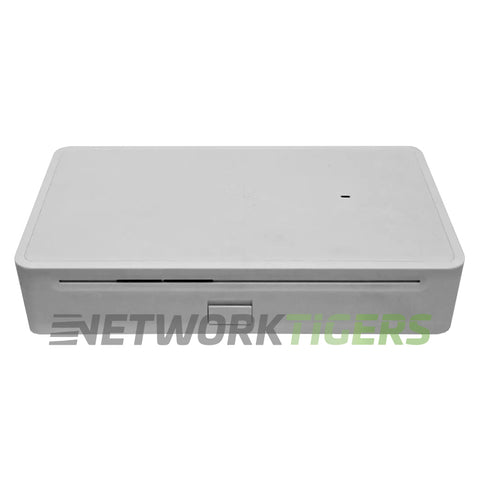

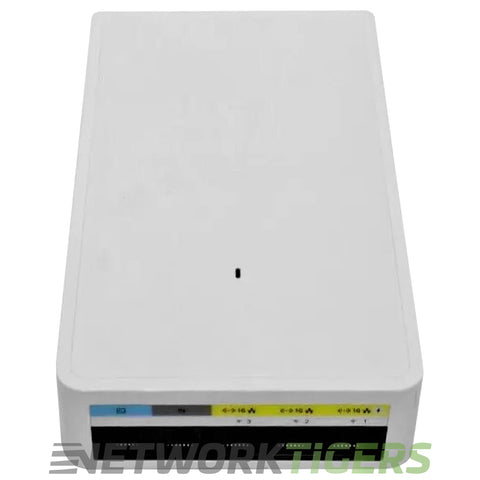

Cisco C9105AXW-B Internal Antennas Wi-Fi 6 2x2 MIMO Wall Plate Wireless AP.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Cisco wireless LAN controllers (Catalyst 9800 Series, or legacy 3504/5520/8540 and virtual controller)
- Suggested Use : Wall-mounted deployment, specifically designed for hospitality, residence halls, and other multi-dwelling units
- Region : US
- Radios : 2x, one 2.4GHz and one 5GHz, no dedicated third scanning radio on this model
- Spatial Streams per Radio : 2x streams on both 2.4GHz and 5GHz using 2x2 by 2, for 4x total combined
- Maximum Data Rate : Up to 1.488 Gbps combined (80 MHz on 5GHz and 20 MHz on 2.4GHz)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy (BLE) 5 radio for location-based use cases like asset tracking and wayfinding
- PoE Standard : 802.3af sufficient for 2.5G mGig link speed with USB and LAN1 PSE disabled, 802.3at (PoE+) or Cisco UPOE required for full functionality with either USB or LAN1 PSE enabled
- DC Power Input : PoE only
- Uplink Ports : 1x 100/1000/2500 Base-T Ethernet uplink RJ-45
- Other Ports : 3x 10/100/1000 Base-T Ethernet downlink RJ-45 (LAN1, LAN2, LAN3, LAN1 supports 10.5W PSE power budget), 1x Management console port RJ-45, 1x USB 2.0 at 4.5W, plus a passthrough port
- Antenna Type : Integrated internal antennas, 2.4GHz at 3dBi peak gain, 5GHz at 5dBi peak gain
- Mounting Options : Wall mount, specifically designed bracket, part number AIR-AP-BRACKET-W4=, spacer kit also available separately, part number C9105AXW-KIT
- Mounts Included : None
- Model Number : C9105AXW-B
- Part Number : C9105AXW-B, C9105AXW-B=, C9105AXW-B-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9105AXW-B Wi-Fi 6 802.11ax Internal Antennas Wall Plate Wireless AP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Mount Bracket Not Included
