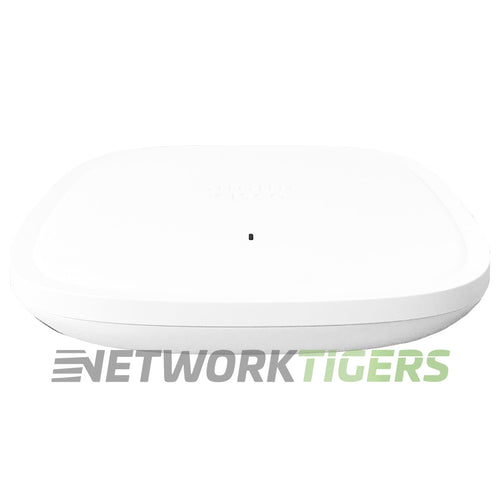

The Cisco C9117AXI-B Catalyst Wi-Fi 6 wireless access point is designed to provide fast and reliable connectivity with its advanced features. An 8x8:8 MU-MIMO technology can handle multiple connections simultaneously, improving network efficiency.
This access point supports the 2.4-GHz and 5-GHz frequency bands, allowing for better coverage in various environments. It utilizes the data link protocol of 802.11ac, enabling high-speed data transfer rates up to a maximum of 3.Gbps.
The C9117AXI-B has internal antennas that ensure optimal signal strength and range without additional hardware requirements or installations.
Cisco Catalyst 9117AXI Access Point: Indoor environments, with internal antennas, C9117AXI-B
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Wireless LAN controllers (Catalyst 9800 Series, or legacy 3500/5520/8540 and virtual controller
- Suggested Use : General indoor enterprise deployment, networks of all sizes, remote worker or micro-office extension via OfficeExtend, high-density applications
- Region : US (FCC Region B)
- Radios : 2x, one 2.4GHz and one 5GHz, no dedicated third scanning radio on this model
- Spatial Streams per Radio : 4x streams on 2.4GHz using 4x4, 8x streams on 5GHz using 8x8, for 12x total combined
- Maximum Data Rate : Up to 600 Mbps on 2.4GHz (802.11n), up to 5 Gbps on 5GHz (802.11ax)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5.0 radio for location tracking and wayfinding use cases
- PoE Standard : 802.3bt (Cisco UPOE/UPOE+) for full functionality with USB enabled - AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af only) available separately
- Uplink Ports : 1x Multigigabit Ethernet RJ-45, supporting 100/1000/2500/5000
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 port, up to 4.5W, enabled via future software
- Antenna Type : Integrated internal antennas, omnidirectional in azimuth, 2.4GHz at 4dBi peak gain, 5GHz at 6dBi peak gain
- Mounting Options : AIR-AP-BRACKET-1, flush ceiling, lowest profile, default if unspecified, or AIR-AP-BRACKET-2, universal, electrical box, NEMA enclosure, or wall, plus AIR-CHNL-ADAPTER for ceiling channel rail mounting
- Mounts Included : None Included
- Model Number : C9117AXI-B
- Part Number : C9117AXI-B, C9117AXI-B=, C9117AXI-B-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9117AXI-B Wi-Fi 6 802.11ax Internal Omni Directional Antenna Indoor WAP as described above
- One (1) Mounting Hardware Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
