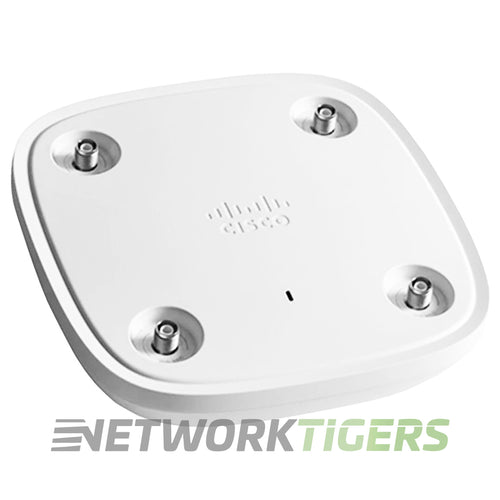

The Cisco C9130AXE-B Indoor 802.11ax (Wi-Fi 6) External Antenna WAP is a high-performance wireless access point designed for indoor use. It operates on both the 2.4 GHz and 5 GHz frequency bands with a maximum data rate of up to 1.5 Gbps.
This access point supports Wi-Fi 6 technology, also known as 802.11ax, which enhances network efficiency and performance compared to previous generations of Wi-Fi standards. It can provide maximum data rates of up to 1.5 Gbps with dual-band capabilities operating at both the commonly used frequencies 2.4 GHz and 5 GHz.
Equipped with four external antenna ports and eight transmit and receive streams (8x8 MU-MIMO), this access point enables improved capacity by serving multiple clients simultaneously.
Its Orthogonal Frequency-Division Multiple Access (OFDMA) capability allows efficient spectrum utilization by dividing each channel into smaller sub-channels called Resource Units that are allocated based on client demands within short intervals—delivering better overall performance even in crowded environments.
Cisco Catalyst 9130AXE Access Point: Challenging indoor environments, with external antennas - C9130AXE-B: Cisco Catalyst 9130 Series, FCC Domain.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Wireless LAN controllers (Catalyst 9800 Series, or legacy 3504/5520/8540 and virtual controller)
- Licensing : Mandatory subscription-based licensing required
- Suggested Use : High-density and large open-area environments, auditoriums, convention centers, libraries, cafeterias, arenas and stadiums, also suited to industrial applications requiring operation in higher temperatures
- Region : US (Region B)
- Radios : 2x by default, dual-radio mode with one 8x8 5GHz and one 4x4 2.4GHz, software-splittable into dual 4x4 5GHz mode for macro/macro cell coverage
- Spatial Streams per Radio : 8x streams on 5GHz, or dual 4x4 in split mode, plus 4x streams on 2.4GHz, for 12x total combined in default mode
- Maximum Data Rate : Up to 10 Gbps combined, 160MHz on 5GHz and 20MHz on 2.4GHz
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio for location-based use cases like asset tracking and wayfinding
- PoE Standard : 802.3af sufficient for reduced 1x1/1x1 operation at 1G link speed, 802.3at PoE+ required for 4x4/8x8 or dual 4x4/4x4 operation at 5G link speed, 802.3bt Cisco UPOE needed for full 4x4/8x8 operation with USB simultaneously enabled
- PoE Injector : Not included, optional AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af only) available separately
- Uplink Ports : 1x Multigigabit Ethernet RJ-45, supporting 100/1000/2500/5000
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 at 4.5W, enabled via future software
- Antenna Type : External, connectorized, no internal antennas, requires a suitable antenna system before operation
- Antenna Ports : Smart antenna connector, a compact multi-RF connector with 8-DART interface, supports Self-Identifiable Antennas, requires AIR-CAB002-D8-R= adapter cable for antennas with RP-TNC connectors, or AIR-CAB003-D8-N= for the AIR-ANT2513P4M-N= specifically
- Mounting Options : AIR-AP-BRACKET-1, flush ceiling, lowest profile. AIR-AP-BRACKET-2, universal, electrical box, NEMA enclosure, or wall. AIR-AP-BRACKET-9=, mounts AP to back of C-ANT9103 antenna.
- Mounts Included : None Included
- Model Number : C9130AXE-B
- Part Number : C9130AXE-B, C9130AXE-B=, C9130AXE-B-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9130AXE-B Wi-Fi 6 802.11ax US External Antenna Indoor Wireless AP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Wall Mount Bracket Not Included
