The Cisco C9130AXI-EWC-B is a next-generation Wi-Fi 6 access point with MU-MIMO technology and internal antennas. It operates on both the 2.4 GHz and 5 GHz frequency bands, supporting data link protocols like IEEE 802.11ax, Ethernet, Fast Ethernet, Gigabit Ethernet, and more for versatile connectivity options.
With Multigigabit Ethernet providing uplink speeds of up to 5 Gbps, this WAP offers high-performance networking capabilities suitable for demanding environments in the US regulatory domain. The compact design makes it easy to install while delivering reliable wireless connections at fast speeds across various devices within your network infrastructure without compromising performance or reliability levels.

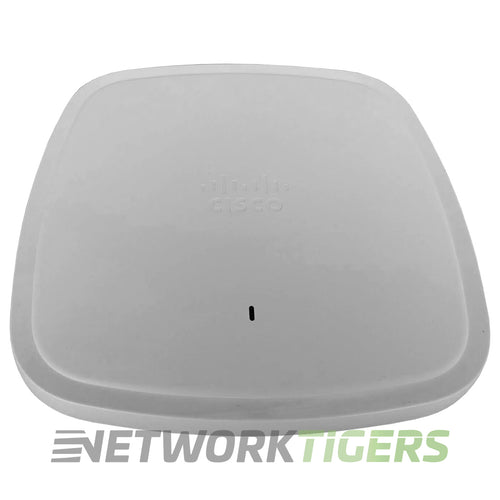

Cisco C9130AXI-EWC-B 802.11ax Wi-Fi 6 MU-MIMO Internal Antenna WAP w/ EWC
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Built-in embedded controller, no physical appliance needed, this EWC variant runs the same code as the physical controller platform, making later migration straightforward
- Suggested Use : High-density environments, general indoor deployment, supports Flexible Radio Assignment for on-demand client capacity scaling
- Region : Region B (US)
- Radios : 2x by default, dual-radio mode with one 8x8 5GHz and one 4x4 2.4GHz, software-splittable into tri-radio mode, two 4x4 5GHz plus one 4x4 2.4GHz, for increased client capacity
- Spatial Streams per Radio : 8x streams on 5GHz, or dual 4x4 in tri-radio mode, plus 4x streams on 2.4GHz, for 12x total combined in default dual-radio mode
- Maximum Data Rate : Up to 5.38 Gbps combined, 8x8 80MHz or dual 4x4 80+80MHz on 5GHz, plus 4x4 20MHz on 2.4GHz
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio for location-based use cases like asset tracking, wayfinding, and analytics
- PoE Standard : 802.3af sufficient for reduced 1x1/1x1 operation at 1G link speed, 802.3at PoE+ required for 4x4/8x8 or dual 4x4/4x4 operation at 5G link speed, 802.3bt Cisco UPOE needed for full 4x4/8x8 operation with USB simultaneously enabled
- PoE Injector : Not included, optional AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af only) available separately
- Uplink Ports : 1x Multigigabit Ethernet RJ-45, supporting 100/1000/2500/5000
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 at 4.5W
- Antenna Type : Integrated internal antennas, omnidirectional in azimuth, 2.4GHz at 4dBi peak gain, 5GHz at 6dBi peak gain
- Mounting Options : AIR-AP-BRACKET-1, flush ceiling, lowest profile, default if unspecified, or AIR-AP-BRACKET-2, universal, electrical box, NEMA enclosure, or wall, plus AIR-AP-BRACKET-9= for mounting directly to the back of the C-ANT9103 antenna
- Mounts Included : Not Included
- Model Number : C9130AXI-EWC-B
- Part Number : C9130AXI-EWC-B
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9130AXI-EWC-B Wi-Fi 6 802.11ax Internal Omni Antenna Indoor WAP w/ EWC as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Bracket Not Included
