The Cisco C9200-24PB-A is a 24-port, 1GbE PoE+ switch with enhanced VRF capabilities. It offers up to 370W of power for connected devices or expands to a total PoE budget of 740W when equipped with an additional PWR-C6-600WAC PSU.
The device supports stacking and delivers switching capacity up to 288 Gbps, forwarding traffic at rates as high as 214 Mpps in stacked configurations. Its MAC address table holds up to 32,000 entries while supporting virtual networks numbering up to thirty-two instances.
Designed with one module slot for optional uplinks, the unit ensures scalability within network deployments requiring flexibility without sacrificing throughput efficiency or latency management across workloads demanding fast connections throughout its architecture.

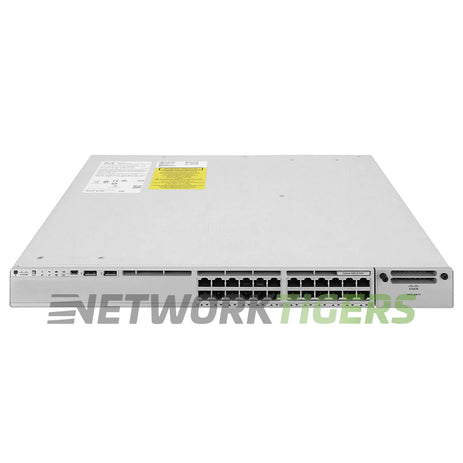

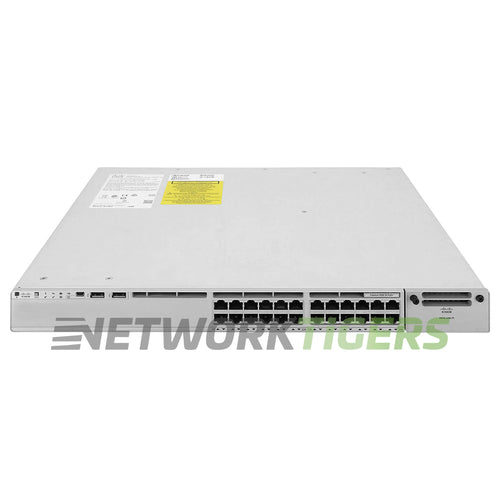

Cisco C9200-24PB-A 24x 1GB PoE+ RJ45 1x Module Slot Switch w/ Enhanced VRF
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ45 Console, 1x Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT
- Stacking Options : C9200-24PB-A supports 32 Virtual Networks. These SKUs cannot be stacked with C9200 SKUs with 4VNs.
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M - Not Included
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-4G (4x 1GB SFP) , C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow (Standard)
- Fan Module Options : 2x C9200-FAN Fan Modules Included
- Power Supplies Included : 1x PWR-C6-600WAC Included - 2x Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C6-600WAC, PWR-C5-BLANK, PWR-C6-715WDC
- PoE Budget : 370W (Single PSU), 740W (w/ Second PWR-C6-600WAC PSU)
- Switching Capacity : 128 Gbps (288 Gbps w/ Stacking)
- Forwarding Rate : 95.23 Mpps (214 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- VLAN ID's : 4096
- Virtual Networks : 32
- Model Number : C9200-24PB-A
- Part Number : C9200-24PB-A
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9200-24PB-A 24x 1GB PoE+ RJ45 1x Module Slot Switch w/ Enhanced VRF as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
