The Cisco C9200-48PXG-E switch is part of the Catalyst 9200 Series and offers high-performance capabilities for demanding network environments. Its 40x 1GB PoE+ RJ45 ports provide many connectivity options, eight multi-Gigabit PoE+ RJ45 ports, and a modular slot for expansion.
This switch has a robust power budget with options between 740W (with a single primary PSU) or an impressive 1440W (with a secondary PSU). It also offers a switching capacity of up to 400 Gbps, which can be enhanced to 580 Gbps when stacked.
With forwarding rates reaching 297.61 Mpps without stacking and 431 Mpps with stacking, the C920048PXGE delivers fast data transfer speeds while smoothly accommodating large amounts of traffic.

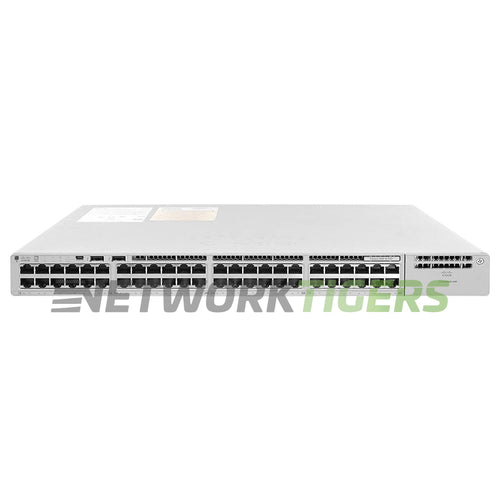

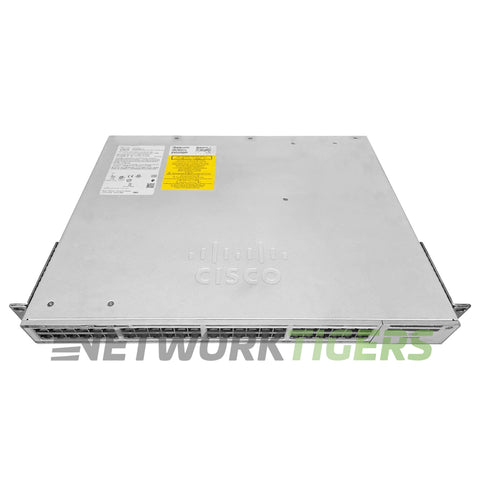

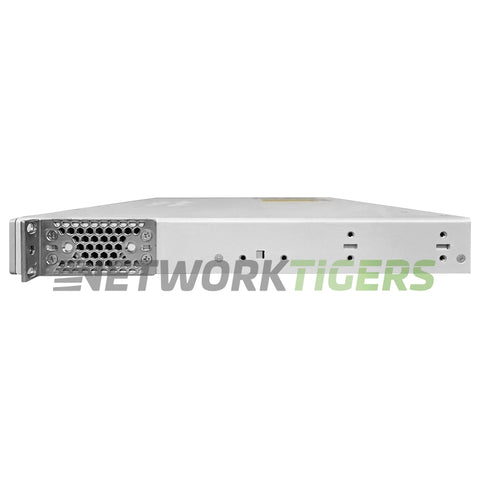

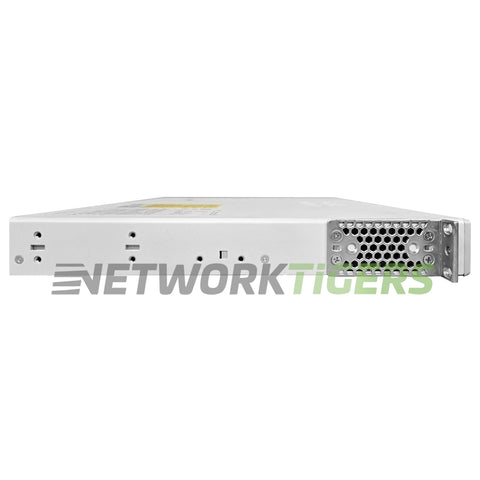

Cisco C9200-48PXG-E 40x 1GB PoE+ RJ45 8x MultiGB PoE+ RJ45 1x Mod Slot Switch
- Network Ports : 40x 1 Gigabit Ethernet PoE+ RJ45, 8x Multi Gigabit Ethernet PoE+ RJ45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ45 Console, 1x 1 Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately
- Stacking Options : Stacking Bandwidth = 160 Gbps - This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-2Y (2x 25G), C9200-NM-2Q (2x 40GB QSFP), C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
- Switch Version : Network Essentials
- AirFlow Direction : Front-to-Back Airflow (Standard)
- Fan Module Options : 2x C9200-FAN Fan Modules Included
- Power Supplies Included : 1x PWR-C6-1KWAC Included - 2x Slots - 2nd Power Supply ordered separately
- Power Supply Options : PWR-C6-1KWAC, PWR-C6-715WDC, PWR-C5-BLANK
- PoE Budget : 740W (w/ Single Primary PSU), 1440W (w/ Secondary PSU)
- Switching Capacity : 400 Gbps (580 Gbps w/ Stacking)
- Forwarding Rate : 297.61 Mpps (431 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- VLAN ID's : 4096
- DRAM and Flash : DRAM = 4 GB, Flash = 4 GB
- Model Number : C9200-48PXG-E
- Part Number : C9200-48PXG-E
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9200-48PXG-E 40x 1GB PoE+ RJ45 8x MultiGB PoE+ RJ45 1x Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
