The Cisco C9200L-24PXG-4X-E switch is a high-performance networking device designed for modern business environments. With 24x 1GB PoE+ RJ-45 ports, it provides power and connectivity to devices such as IP phones and security cameras. The switch offers eight MultiGB ports that allow for flexible network expansion.
Featuring four 10GB SFP+ uplink interfaces, this switch enables fast data transfer between different parts of your network infrastructure. The PoE budget of 370W (740W with optional secondary power supply) ensures sufficient power delivery to all connected devices.
Equipped with advanced technology, the Cisco C9200L-24PXG-4X-E has a switching capacity of 272 Gbps and can forward data at an impressive rate of up to 214.28 Mpps (million packets per second). Its MAC address table size supports up to 16,000 addresses.

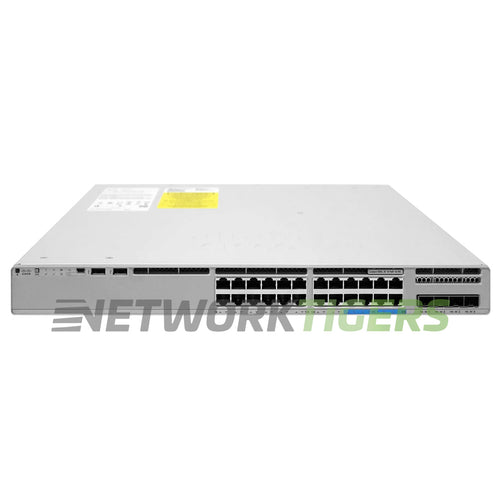

Cisco C9200L-24PXG-4X-E 24x 1GB PoE+ RJ-45 (8x MultiGB) 4x 10GB SFP+ Switch
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45 (8x Multi Gigabit Ethernet RJ-45 (up to 10G), 16x Gigabit Ethernet RJ-45)
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (Fixed)
- Management Ports : 1x RJ-45 Management, 1x USB, 1x USB-C
- Stacking Ports : Stacking is possible on the 9200L models through the C9200L-STACK-KIT module (not included), supporting StackWise-80 - (Rear of Switch)
- Stacking Bandwidth Support : 80Gbps
- Supported Stack Members : Other C9200L models with same license level - Mixed stacking is not supported. You cannot stack fixed (C9200L SKUs) with modular (C9200 SKUs) models, or other Catalyst switches
- Switch Version : Network Essentials
- Packet Buffer : 6 MB
- Product Family : Catalyst 9200L Series
- Power Supplies Included : 1x PWR-C5-600WAC Default Primary PSU Included
- Power Supply Options : PWR-C5-600WAC, PWR-C5-715WDC
- PoE Budget : 370W (740W with optional secondary power supply)
- Switching Capacity : 272 Gbps
- Forwarding Rate : 214.28 Mpps
- MAC Address Table Size : 16,000
- VLAN's : 4096
- DRAM and Flash : 4 GB DRAM, 4 GB Flash
- Model Number : C9200L-24PXG-4X-E
- Part Number : C9200L-24PXG-4X-E, C9200L-24PXG-4X-E=, C9200L-24PXG-4X-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9200L-24PXG-4X-E 24x 1GB PoE+ RJ-45 (8x MultiGB) 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
