The Cisco Catalyst 9300-24UB-E switch offers a reliable and high-performance solution for network connectivity in enterprise environments. With its 24x 1GB UPoE RJ45 ports, this switch provides ample support for power-hungry devices.
Featuring an expansion module slot, you have the flexibility to enhance your networking capabilities as needed. The PoE budget of up to 830W (which can be extended with additional power supply units) ensures sufficient power delivery across all connected devices.
With a switching capacity of 208 Gbps (or even higher when stacked), this switch enables seamless data transmission within your network. The forwarding rate of up to 154.76 Mpps further enhances efficiency by swiftly processing incoming packets.
Thanks to its generous MAC address table size of 32,000 entries, you can expect efficient communication between various connected devices on your network.

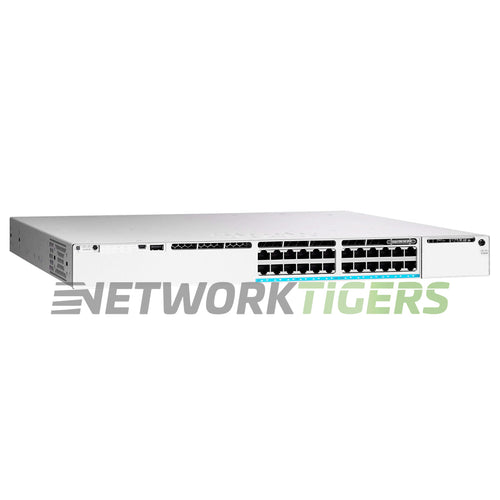

Cisco C9300-24UB-E: Catalyst 9300 24x 1Gb RJ45 UPOE ports, Network Essentials.
- Network Ports : 24x 1 Gigabit Ethernet UPoE+ RJ45
- Management Ports : 1x RJ45, 1x USB 2.0, 1x Mini USB
- Stacking Ports : 2x StackWise 480 Ports (480 Gbps Stacking Bandwidth), 2x StackPower Ports
- Stacking Options : Up to eight switches can be connected in the stack | Supported stack members = Other C9300 SKUs with same license level - C9300 higher scale SKUs only stack with other like higher scale models
- Stacking Cable Options : Cables sold separately - Cable Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M, CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - None included.
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M, C9300-NM-2Y - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC PSU Included - 2x PSU Slots - 2nd PSU ordered separately
- Power Supply Options : Options for 2nd PSU are PWR-C1-1100WAC, PWR-C1-715WAC, PWR-C1-350WAC
- PoE Budget : 830W (1180W with 350W 2nd PSU, 1440W with 715W 2nd PSU, 1440W with 1100W 2nd PSU)
- Switching Capacity : 208 Gbps (688 Gbps with Stacking)
- Forwarding Rate : 154.76 Mpps (511.90 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-24UB-E
- Part Number : C9300-24UB-E, C9300-24UB-E=, C9300-24UB-E-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300-24UB-E Catalyst 9300 24x 1GB UPoE RJ45 1x Exp Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
