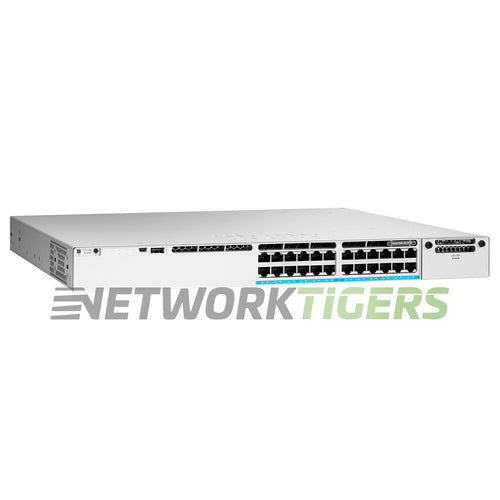

The Cisco Catalyst C9300-24UX-A is a 1U rack-mount switch in Cisco's Catalyst 9300 modular-uplink series, measuring 1.73 in (4.39 cm) high and 17.3 in (44.0 cm) wide. It provides 24 Multigigabit UPoE RJ45 ports, supporting 100M to 10G Ethernet over Category 5e, 6, or 6a cabling, along with one expansion module slot supporting 1G, 10G, 25G, or 40G uplink modules.
Switching capacity is 640 Gbps, rising to 1,120 Gbps when stacked, with a forwarding rate of 476.19 Mpps (833.33 Mpps stacked). PoE budget is 560 watts with the default power supply and up to 1440 watts with a second supply installed, supporting IEEE 802.3af and 802.3at powered devices. Compatible expansion modules include the C9300-NM-4G, C9300-NM-8X, and C9300-NM-2Q. The switch stacks with other Catalyst 9300 modular-uplink units over StackWise-480 cabling, maintains a MAC address table of 32,000 entries, and mounts in a standard 19-inch rack.
Cisco C9300-24UX-A: Catalyst 9300 24-port Multigigabit UPoE, modular uplink, Network Advantage.
- Network Ports : 24x MultiGigabit UPoE (100/1000/2.5G/5G/10) RJ45
- Management Ports : 1x 1 Gigabit Management RJ45, 1x RS-232 RJ45, 1x USB Type A
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports - Cables sold separately
- Stacking Bandwidth Support : Stackwise-480 (480 Gbps) - Number of Members = 8 (Other C9300 SKUs with same license level, C9300 higher scale SKUs only stack with other like higher scale models)
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power)
- Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ45)
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Field Replaceable Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC Included - 2x Total PSU Slots - 2nd PSU Ordered separately
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC,
- PoE Budget : 560W - Default PSU - (910W w/ 350W 2nd PSU, 1275W w/ 715W 2nd PSU, 1440W w/ 1100W 2nd PSU)
- Switching Capacity : 640 Gbps (1120 Gbps with Stacking)
- Forwarding Rate : 476.19 Mpps (833.33 Mpps with Stacking)
- MAC Address Table Size : 32,000
- VLAN ID's : 4094
- DRAM and Flash : DRAM = 8GB, Flash = 16GB
- Model Number : C9300-24UX-A
- Part Number : C9300-24UX-A
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-24UX-A Catalyst 9300 24x MultiGB UPoE RJ45 1x Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
