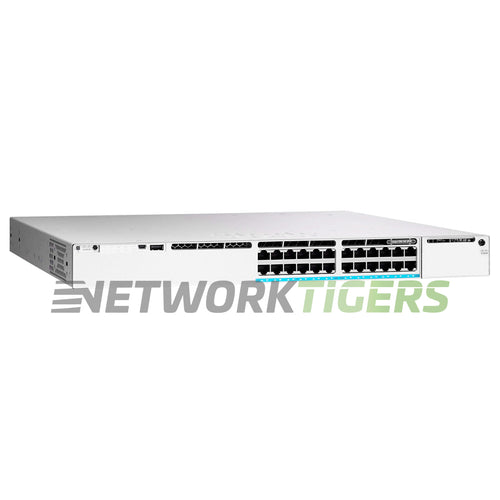

The Cisco C9300-24UXB-A Catalyst 9300 switch is a powerful and versatile networking solution. With 24 multi-gigabit RJ45 ports, it offers high-speed connectivity for multiple devices. The switch features a default PoE budget of 560W, which can be increased to 910W or higher with an additional power supply.
The switching capacity of the C9300-24UXB-A is impressive at up to 640 Gbps (or even greater when stacked), allowing for fast data transfer across networks. It has a forwarding rate of up to 476.19 Mpps (or higher with stacking) and supports a MAC address table size of up to 32,000 entries.
This advanced network switch from Cisco provides reliable performance and scalability for demanding environments where speed and efficiency are crucial. Its modular design allows for future expansion while maintaining backward compatibility with existing infrastructure.
Cisco C9300-24UXB-A: Catalyst 9300 24x mGig RJ45 UPOE ports, Network Advantage.
- Network Ports : 24x MultiGigabit Ethernet UPOE RJ45
- Management Ports : 1x Management Console RJ45, 1x Management Console RJ45, 1x USB 3.0 SSD
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection port
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Not Included
- Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ45) - Not Included
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Field Replaceable Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W AC Included - 2x Total PSU Slots
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - Not Included
- PoE Budget : 560W - Default PSU - (910W w/ 350W 2nd PSU, 1275W w/ 715W 2nd PSU, 1440W w/ 1100W 2nd PSU)
- Switching Capacity : 640 Gbps (1120 Gbps with Stacking)
- Forwarding Rate : 476.19 Mpps (833.33 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-24UXB-A
- Part Number : C9300-24UXB-A, C9300-24UXB-A=, C9300-24UXB-A-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300-24UXB-A Catalyst 9300 24x MultiGB UPOE RJ45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
