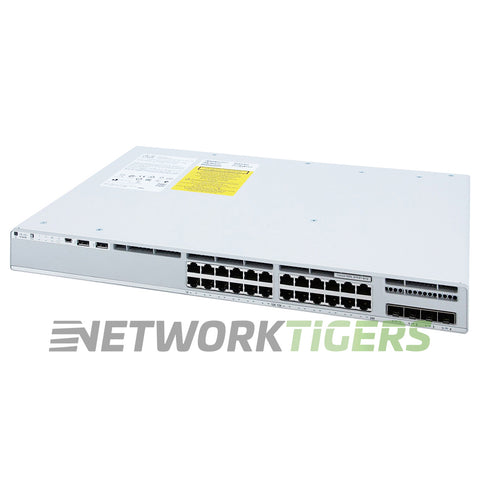

NEW Cisco C9300L-24P-4X-E 24x 1GB PoE+ RJ45 4x 10GB SFP+ Switch
New

NEW Cisco C9300L-24P-4X-E 24x 1GB PoE+ RJ45 4x 10GB SFP+ Switch

$ 2,494.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5291
UPC: 889728174589

Overview

The Cisco C9300L-24P-4X-E is a high-performance switch that can support your networking needs. With 24 ports of Power over Ethernet (PoE+) and 4x additional 10 Gigabit SFP+ ports, this switch provides both power and flexibility for your network devices.

Featuring a generous PoE budget of up to 505W, you won't have to worry about running out of power for your connected devices. The switching capacity of this switch is impressive at 128 Gbps, or an even more impressive capability with stacking at the rate of up to 448 Gbps.

With a forwarding rate as fast as approximately 95.23 Mpps or significantly boosted when stacked - around 333.33 Mpps-, data flows smoothly through the network without any bottlenecks slowing it down. The MAC address table size also supports large-scale networks with its maximum limit set at 32000 addresses.

Cisco C9300L-24P-4X-E: Catalyst 9300 24-port fixed uplinks PoE+, 4X10G uplinks.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 2x USB, 1x Mini USB
  • Stacking Ports : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
  • Stacking Options : Only other C9300L SKUs with same license level (Number of Members - 8) are supported in stacking.
  • Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
  • Switch Version : Network Essentials
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 3x FAN-T2 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-715WAC-P PSU Included - 2nd Power Supply ordered separately.
  • Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P - None Included
  • PoE Budget : 505W (720W w/ 2nd PSU) - 2nd PSU allows PoE+ 802.3at (30W per port) for all 24 ports.
  • Switching Capacity : 128 Gbps (Switching Capacity with Stacking - 448 Gbps)
  • Forwarding Rate : 95.23 Mpps (Forwarding Rate with Stacking - 333.33 Mpps)
  • MAC Address Table Size : 32,000
  • Model Number : C9300L-24P-4X-E
  • Part Number : C9300L-24P-4X-E, C9300L-24P-4X-E=, C9300L-24P-4X-E-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300L-24P-4X-E 24x 1GB PoE+ RJ45 4x 10GB SFP+ Switch as described above
